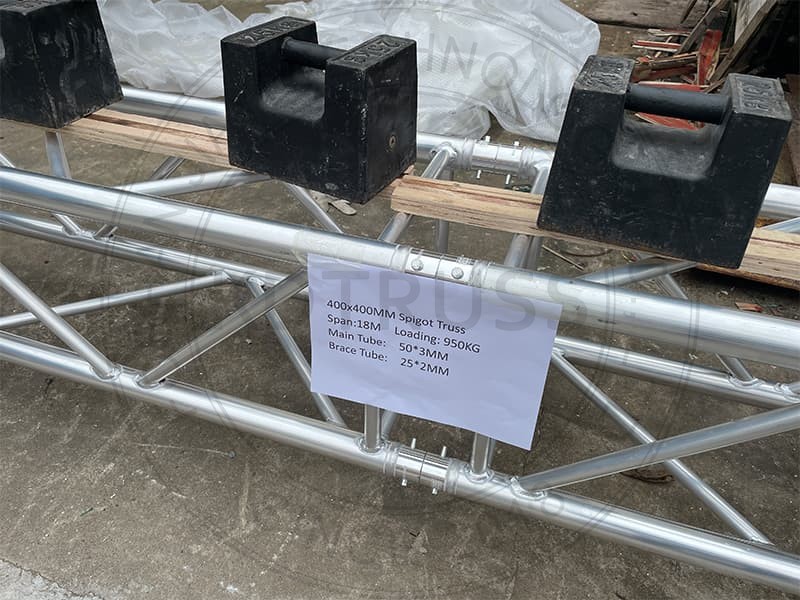

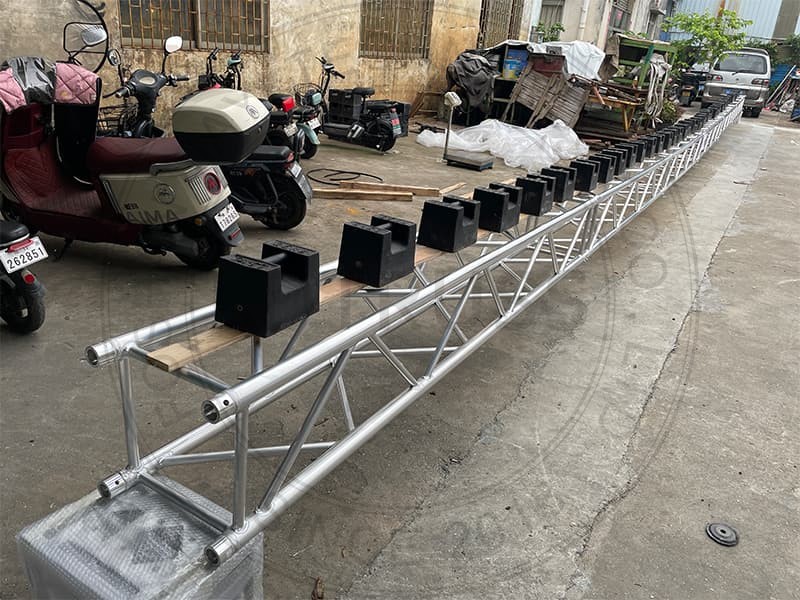

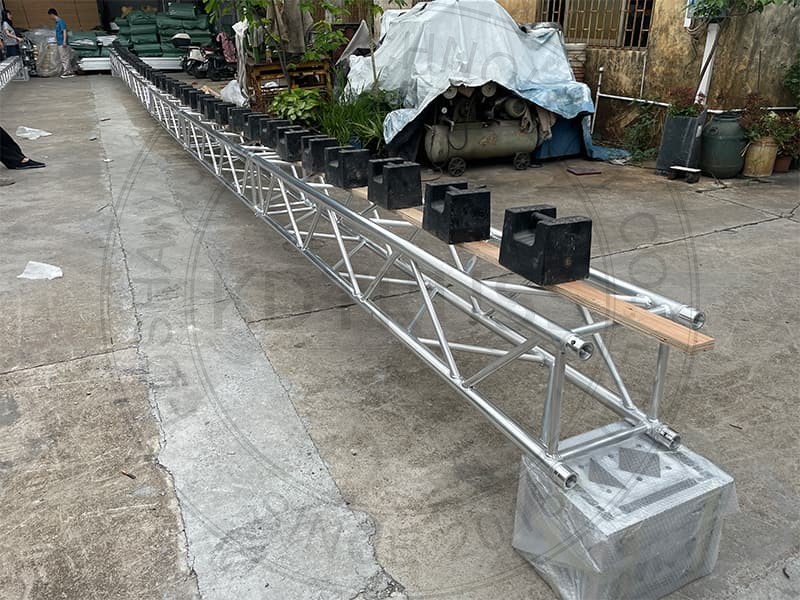

Loading Test for 400*400mm Square Box Truss
For 400mm box truss, made of high quality aluminum 6061-T6, main tube 50mm, wall thickness 3mm, brace tube 25mm, wall thickness 2mm, brace tube 4 sides
Matched with Global truss, Dura truss and Chauvet truss
Span 18m
Distribution loading: 950kg
Center loading: 450kg
We do it, then customer trust on it
No damage, deflection is under 130mm , you can compare with loading table from Global truss
Truss with TUV, CE, ROHS and SGS certificate
