Bolt / Screw Truss
300*300mm Bolt Truss is idea for conference, exhibition and small event. The Truss consist of 50*3mm tube for the main chords and 25*2mm tube for diagonals. The trussing segements are connected by bolting the aluminum plated together.
Item No :
JY30BB-QSOrder(MOQ) :
1mPayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :
8.6kgSilvery Black Truss Structure 12 Inch Aluminum Square Box Screw Bolt Truss. Bolts are supplied for assembly of truss elements. This truss is ideal for conference, exhibition, and small venue work. By incorporating suitable sleeve blocks and towers, this truss can be used with our Ground Support System
| Section type： | Bolted Box Truss |
| Section Size: | 300*300mm |
| Standard Lengths: | 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m |
| Material: | 6082-T6/6061-T6 |
| Main tube: | ∅50*3mm |
| Brace tube: | ∅25*2mm |
| Connection Mode: | Bolt & Nut |
| Bending stress resistand span: | 16m |
| Surface treatment: | Black power coating, Sliver color. |
| Usage： | Indoor/Outdoors events(Show,performances,ceremony,etc) |
Features:
1. Quick, easy-to-use, trouble-free installation.
2. Custom lengths, junctions and curves available.
3. Connection kit supplied with every truss length and junction.
4. Application range includes concert stages, larger exhibit displays or any other types of indoor or outdoor stages.

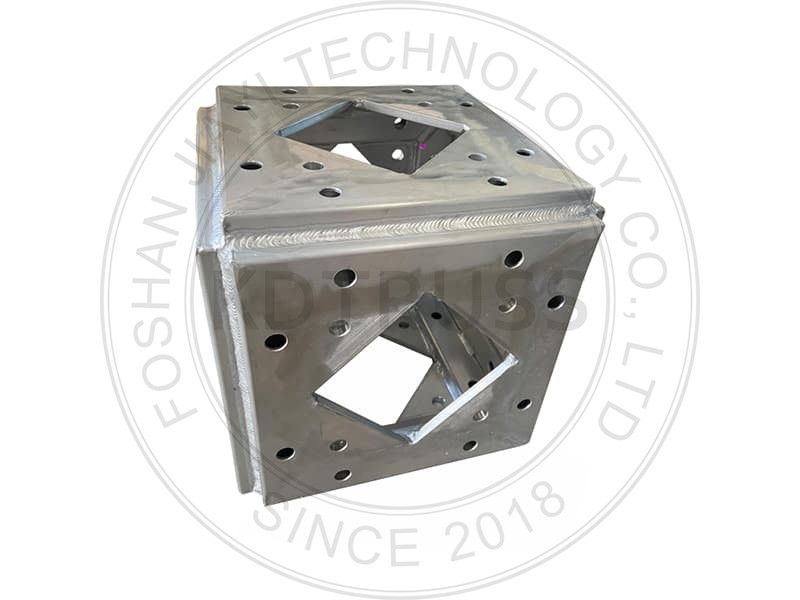

Truss Box Corner Connection:
Using the stage truss tube Joints interconnection hardware screw/bolts.
Quick, easy-to-use, trouble-free installation.
Our Advantages:
1. Our professional welders and engineers with more than 10 years experience.
2. Our experienced design team will provide you with professional drawings for free.
3. Short delivery time-usually 7-10 working days after received your deposit.
4.Competitive prices at preferential prices under the premise of ensuring quality.
5.we have TUV certification
How to cooperate with our factory?
Step1: Kindly let us know your requirements. what size truss structure you want to set up? Length*Width*Height=? how many pillars you need? need top roof ? how heavy loading capacity you wnat to hang on the truss system? where you want to use? indoor or outdoor?
Step2: Our designer will design a draft for your confirm according to your requirements.
Step3: when you confirm the draft our sales will send quotation and shipping fee that if you need.
Step4: If everything is ok. we will confirm production time and delveiry time and send proforma invoice to you.
Step5: you pay 30-50% deposit then send bank receipt to our sales.( standard products can accept 30% deposit, Special length truss or Special design goods need 50% deposit)
Step6: We will arrange to produce your goods once we received your deposit. when the goods are going to finish we will send pgotos and video to you. then you pay balance.
Step7: we will delivery your goods once we received balance and updated shipping information for you.
Step8: After service if you need we can teach you how to set up truss structure to keep truss safety.
Contact us now! Just let us know you from our website then we can make your logo on the truss for free.
If you need bigger or smaller truss just let us know. we have different size truss can help you.
