Conical Truss

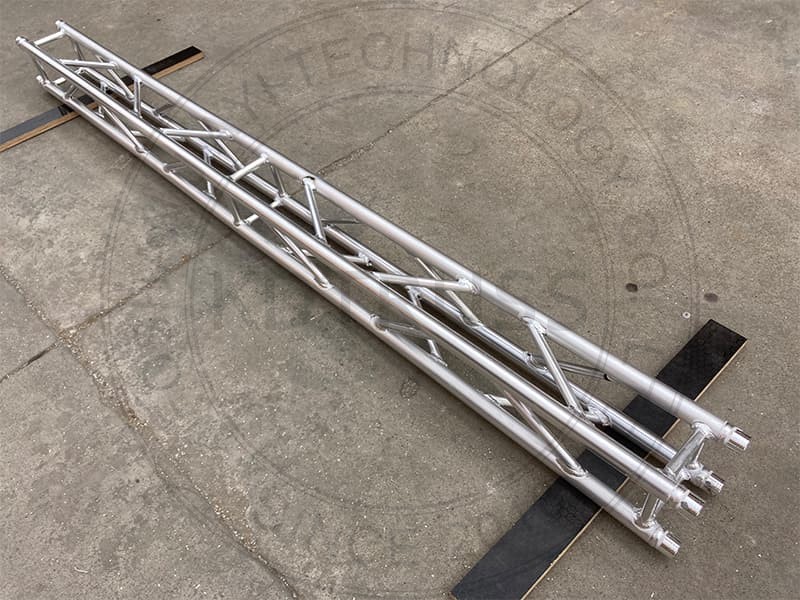

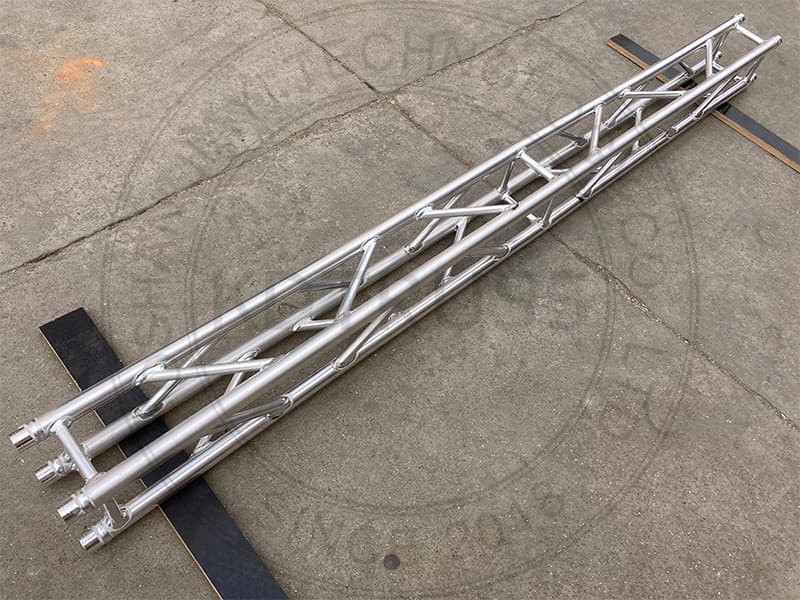

The 150×150mm Construction Display Truss is an aluminum alloy framework structure featuring rapid assembly through spigot joints. Combining lightweight properties with high load-bearing capacity, it is specifically engineered for small-to-medium stages, lighting rigs, and exhibition booths.
Item No :
JY15-QSOrder(MOQ) :
1mPayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :
3.2kg150x150mm Aluminum Spigot Lighting Construction Display Truss
Jiayi is a professional truss manufacturer with more than 10 years experience. We can offer 100*100mm, 200*200mm and 290*290mm square box truss for exhibition. Bending stress resistand span is 10m, Max. loading capacity is 180kg.
| Section type： | aluminum 6x6 Inch Mini Display Truss |
| Section Size: | 150*150mm |
| Standard Lengths: | 0.5m, 1m, 1.5m, 2m, 2.5m, 3m |
| Material: | 6082-T6/6061-T6 |
| Main tube: | ∅25*2mm |
| Brace tube: | ∅16*2mm |
| Connector included: | 4*spigots, 8*pins, 8*R Clips |
| Bending stress resistand span: | 8m |
| Surface treatment: | Black power coating, Sliver color. anodised color. |
| Function: | trade fair, Shop fitting and Advertisement ect |
Our Display Truss Advantage:
Display Truss Usage Guidelines
Base plates or counterweights are required for stability (critical for outdoor use).
Maximum recommended span: 8m (additional mid-span supports needed beyond this limit).
How to cooperate with our factory?
Step1: Kindly let us know what your requirements. what size truss structure you want to set? Length*Width*Height=? how many pillars you need? need top roof? how much loading capacity you wnat to hang on the truss system? where you want to use? indoor or outdoor?
Step2: Our designer will design a draft for your confirm according to your requirements.
Step3: when you confirm the draft our sales will send quotation and shipping fee that if you need.
Step4: If everything is ok. we will confirm production time and delveiry time and send proforma invoice to you.
Step5: you pay 30-50% deposit then send bank receipt to our sales.( standard products can accept 30% deposit, Special length truss and special design goods need 50% deposit)
Step6: We will arrange to produce your goods once we received your deposit. when the goods are going to finish we will send pgotos and video to you. then you pay balance.
Step7: we will delivery your goods once we received balance and updated shipping information for you.
Step8: After service if you need we can teach you how to set up truss structure to keep truss safety.
A detailed quotation will be prepared as soon as receiving your detailed information.
Size for optional:
100*100mm , 200*200mm, 290*290mm, 300*300mm, 350*350mm, 390*390mm, 400*400mm, 300*400mm, 450*450mm, 400*500mm, 500*600mm, 520*760mm, 600*760mm, 1010*600mm etc.
Spigot connecting way for hanging the truss system
Contact us now! Just let us know you from our website then we can make your logo on the truss for free. If you need Bolt connection truss please let us know.
100*100mm Aluminum Lighting Mini Truss made of Aluminum Alloy 6082-T6. it is Lightweight easy to Assemble. Decorative Mini Truss can be used for any exhibition display booth or exhibit hall display for convention centers.
Read More
200*200mm Aluminum Exhibition Box Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Main tube is 30*2mm and Brace tube is 16*2mm. The Box trus system is a 4-point truss system. This truss offer an optimum lifting capacity and indicate a low transport volume with its light weight constroction. Conical connected system is convenient for assembly and collection. It is widely use in trade fair, Shop fitting and Advertisement ect.
Read More
290mm Lighting truss made of Aluminum Alloy 6061-T6 / 6082-T6. Aluminum Alloy itself very low in weight, easy to use, saving installation time and manpower. Aluminum is corrosion resistant, less maintenance, no corrosion protection required. and it can be reused becasue it has high corrosion resistance. Recycle materials , environmental protection. 290*290mm Aluminum spigot truss is multipurpose truss. It can be used in different areas. Such as Wedding party, Exhibition, theatre shows, musicals, trade show, activities and so on.
Read More
400mm Aluminum Roof Truss is a 4-point truss system. Our aluminum Trus system are designed for a variety of application and can by used to support lighting, sound equipment, cameras, digital signs, Stage constructiion, as well as the larger summit industry.
Read More
450*450mm Aluminum Truss is multipurpose truss made of Aluminum Alloy 6082-T6. Most of India market customers would like choose it as pillar truss, can reach 12m high. Factory price with TUV certification. Usually configurated in medium duty truss roof system as beam truss and heavy duty Roof Truss System as pillars truss.
Read More
400*600mm Rectangle Heavy Duty Stage Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Bending stress resistand span is 20m, Max. loading capacity is 1000kg. Usually as beam truss.
Read More
520mm Outdoor Stage Roof Truss is is a kind of light-weight but strong products for event and exhibitions. It is widly used in lighting, sound, led screen and advertising board hanging.
Read More
520*760mm Aluminum Outdoor Stage Roof Truss is a professional-grade aluminum alloy trussing system engineered for demanding outdoor events and large-scale productions. Built with premium aluminum alloy, this robust truss system delivers exceptional load-bearing capacity while maintaining a lightweight design for easy handling and setup.
Read More
