Conical Truss
Event Hanging Video Led Wall Display Stand Rack Truss Aluminum Ground Support Led Screen Truss Stack System with Adjustable Legs.
Item No :
JY-LED supportOrder(MOQ) :
1 piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
SliverShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :

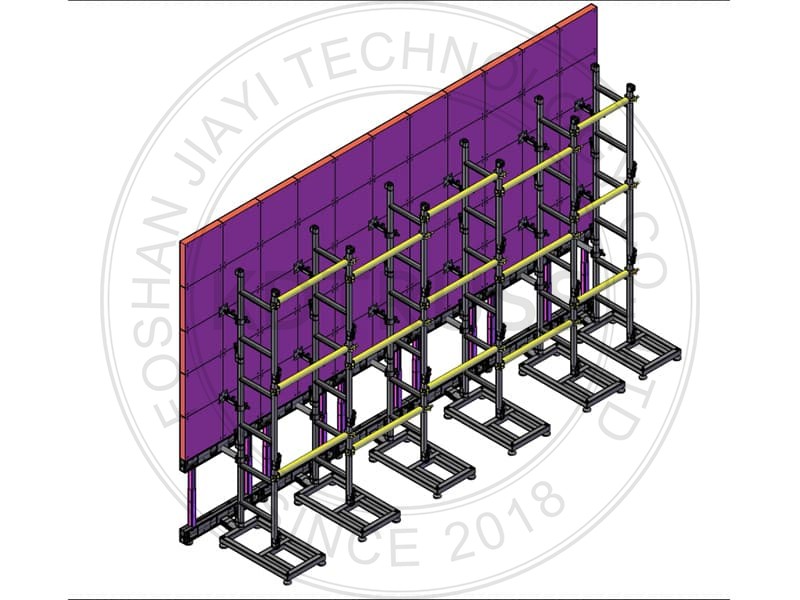

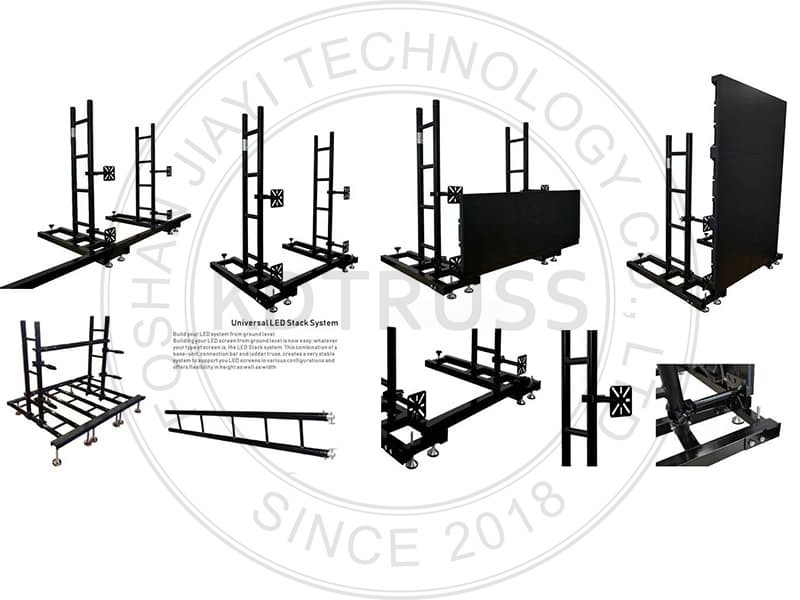

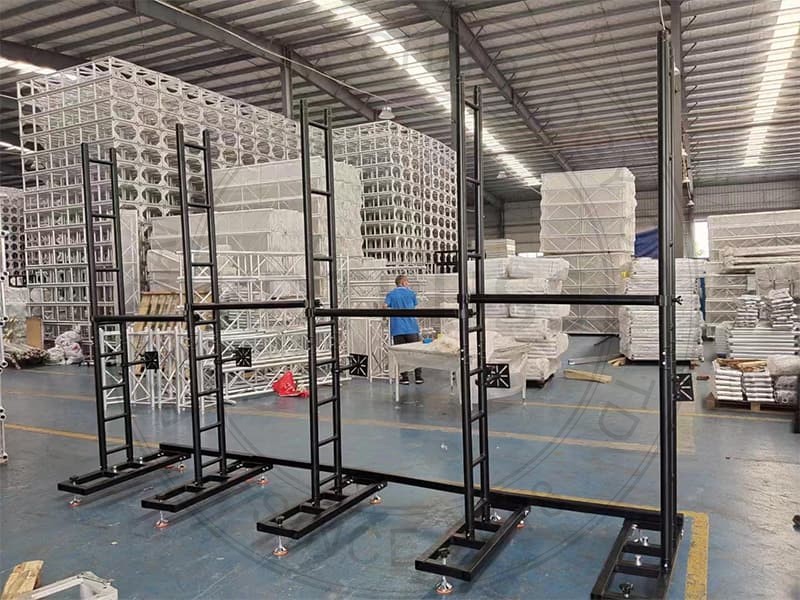

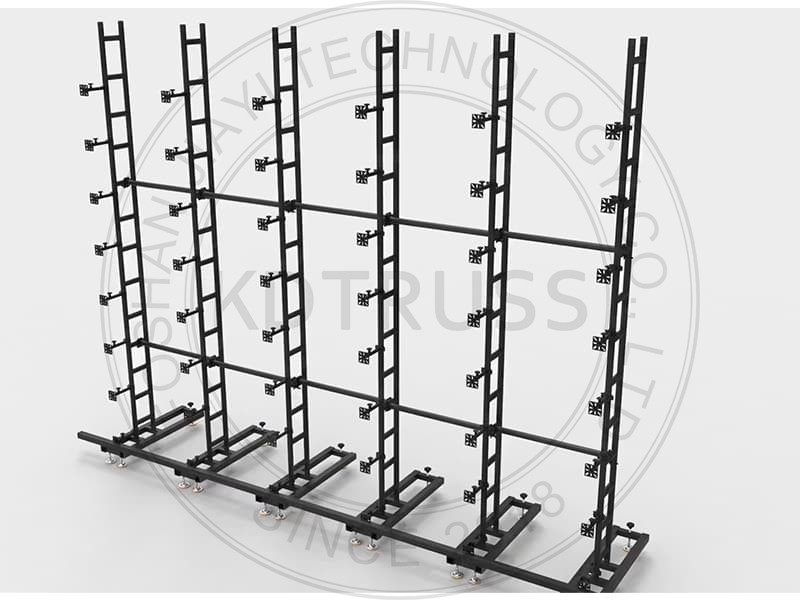

0.78kgBuilding your LED screen from ground level is now easy, whatever screen type/brand you use, JIAYITRUSS offers a universal solution, the LED Stack system. This combination of a base-unit, connection bar and ladder truss, creates a very stable system to support your LED screens in various configurations and offers flexibility in height as well as width.
A side entry clamp with the universal connection plate mounted makes it possible to mount almost any type of LED panel quick and easy.
By using longer connection bars, you can easily extend you screen with another row of panels.

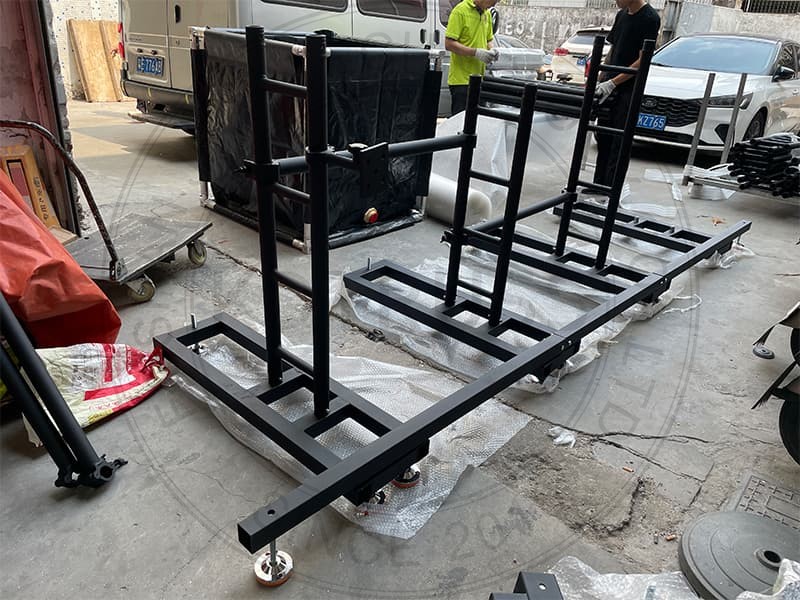

Using the adjustable feet in the front and back of the base-unit, you can safely level the system, so your screen is completely levelled.

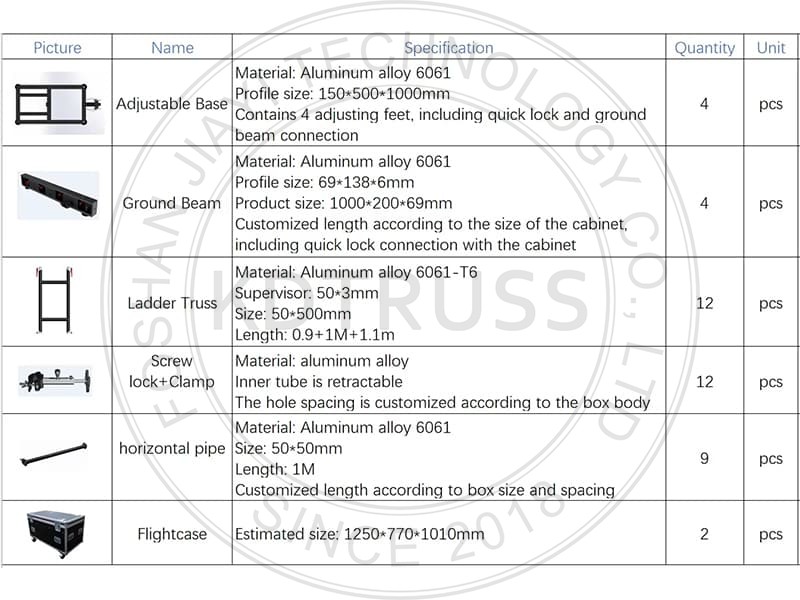

LED Screen stacking frame-Panel Base 500x 100mm takes 2x adjustable feet
LED Screen stacking frame-Structure Truss base frame1000x 230mm takes adjustable feet
LED screen Stacking frame-Structure frame verticalladder truss supports-1000x230mm with Half coupler connections
LED Screen Stacking Frame-Cross Braces-1000mm 50mm Tube cross braces with half couplers
LED Screen Stacking Frame-M22-150mm Adjustablefeet, rear foot support
LED screen stacking Frame-Screen to Frame adjustableVersatile support-M22 Bolt to Half Coupler connection-adjustable 100-200mm

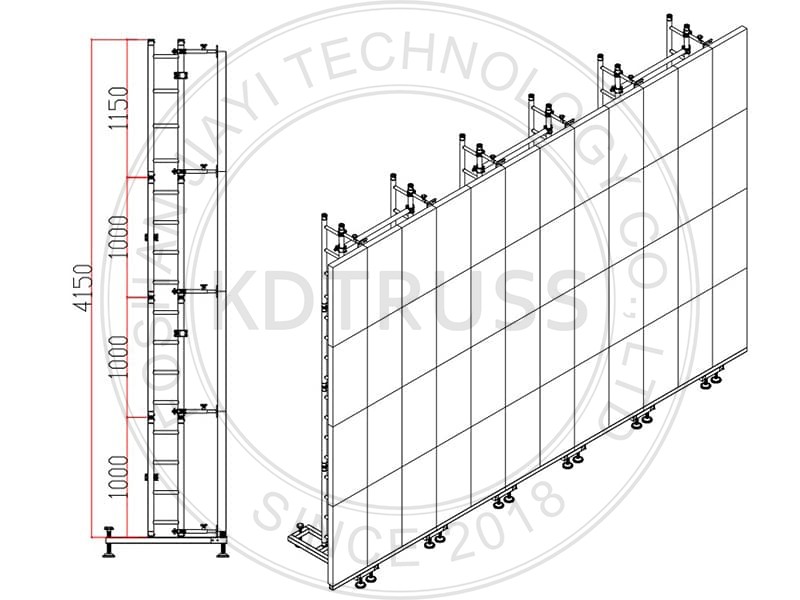

Customers will receive a set of 4x3 meter movable LED brackets, suitable for rental screens, with a Cabinet size of 500*1000mm.
