Conical Truss
Triangular Truss is constructed of main tubes (50 x3 mm) and diagonals (20 x 2 mm). Equipped with the conical coupling system, the Triangle Stage Truss is fast and easy to assemble.
Item No :
JY30-TS10Order(MOQ) :
1mPayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysThe Globa Tri Truss can be found in rental fleets all over the globe, where its low volume and flexible application possibilities makes it the ideal truss for exhibitions and low intensity rental jobs.
Aluminium tri truss is available in a range of corners and accessories.
Please see below Loading Table:
| Truss Span(Length) | 6m | 8m | 10m | 12m | 14m |
| Distribution load(kg/m) | 194.5 | 107.2 | 66.8 | 44.9 | 31.6 |
| Deflection(mm) | 23 | 41 | 63 | 91 | 124 |
| Center point load(kg) | 583.5 | 428.9 | 334.1 | 269.3 | 221.5 |
| Deflection(mm) | 18 | 33 | 51 | 73 | 100 |
This Tri Light Truss offers a Longer Span and heavier lifting capacity compared with JIAYITRUSS Ladder Truss It can be customized to be curved and circular on request. When combined with its related blocks and different corners, it can be installed to be all kinds of Architecture Structure for decoration and rexhibition booths.
Features:
3- point nodding.
TUV and SGS approved.
Free design and technology support.
OEM and ODM acceptable.
Powder coating and anodizing to any color
Application:

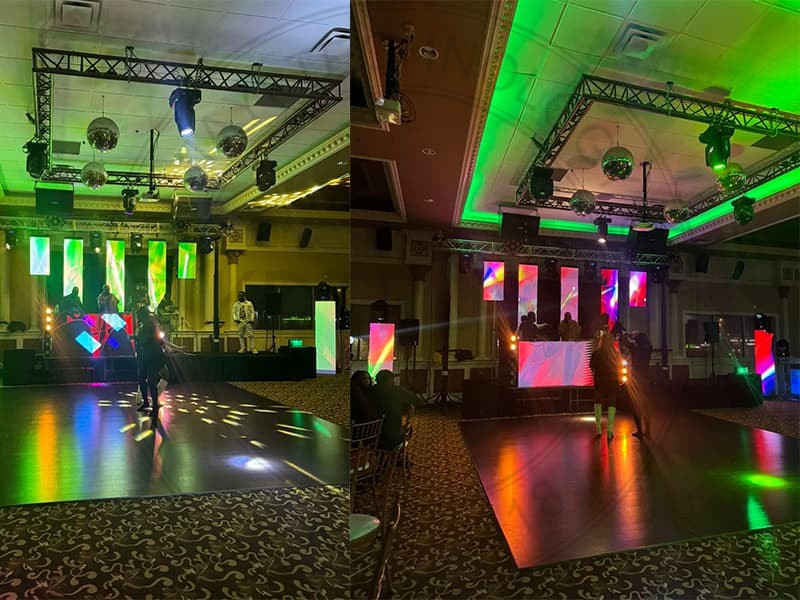

The Aluminum Stage truss is compatible with Global Truss F33 and it is widely used forconcert stagehire, decorations, car shows, exhibitions booths, churches, Small Concerts, ect.
100*100mm Aluminum Lighting Mini Truss made of Aluminum Alloy 6082-T6. it is Lightweight easy to Assemble. Decorative Mini Truss can be used for any exhibition display booth or exhibit hall display for convention centers.
Read More
200*200mm Aluminum Exhibition Box Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Main tube is 30*2mm and Brace tube is 16*2mm. The Box trus system is a 4-point truss system. This truss offer an optimum lifting capacity and indicate a low transport volume with its light weight constroction. Conical connected system is convenient for assembly and collection. It is widely use in trade fair, Shop fitting and Advertisement ect.
Read More
290mm Lighting truss made of Aluminum Alloy 6061-T6 / 6082-T6. Aluminum Alloy itself very low in weight, easy to use, saving installation time and manpower. Aluminum is corrosion resistant, less maintenance, no corrosion protection required. and it can be reused becasue it has high corrosion resistance. Recycle materials , environmental protection. 290*290mm Aluminum spigot truss is multipurpose truss. It can be used in different areas. Such as Wedding party, Exhibition, theatre shows, musicals, trade show, activities and so on.
Read More
Triangular Truss is constructed of main tubes (50 x3 mm) and diagonals (20 x 2 mm). Equipped with the conical coupling system, the Triangle Stage Truss is fast and easy to assemble.
Read More
Aluminum Triangular Light Truss is an indoor truss that utilizes the characteristics of stability, firmness, and pressure resistance of the triangle. It has the advantages of beautiful appearance, small size, and convenient indoor installation.
Read More
400mm Aluminum Roof Truss is a 4-point truss system. Our aluminum Trus system are designed for a variety of application and can by used to support lighting, sound equipment, cameras, digital signs, Stage constructiion, as well as the larger summit industry.
Read More
400*600mm Rectangle Heavy Duty Stage Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Bending stress resistand span is 20m, Max. loading capacity is 1000kg. Usually as beam truss.
Read More
520mm Outdoor Stage Roof Truss is is a kind of light-weight but strong products for event and exhibitions. It is widly used in lighting, sound, led screen and advertising board hanging.
Read More
