Conical Truss

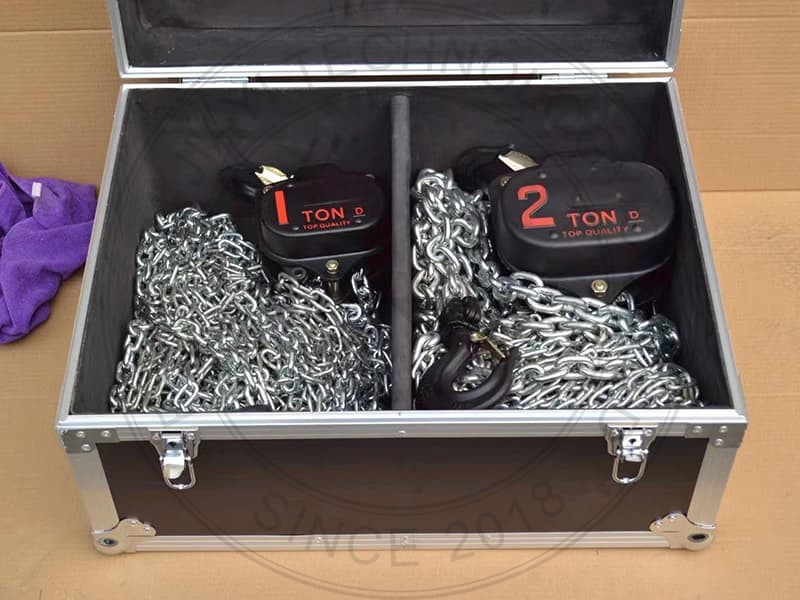

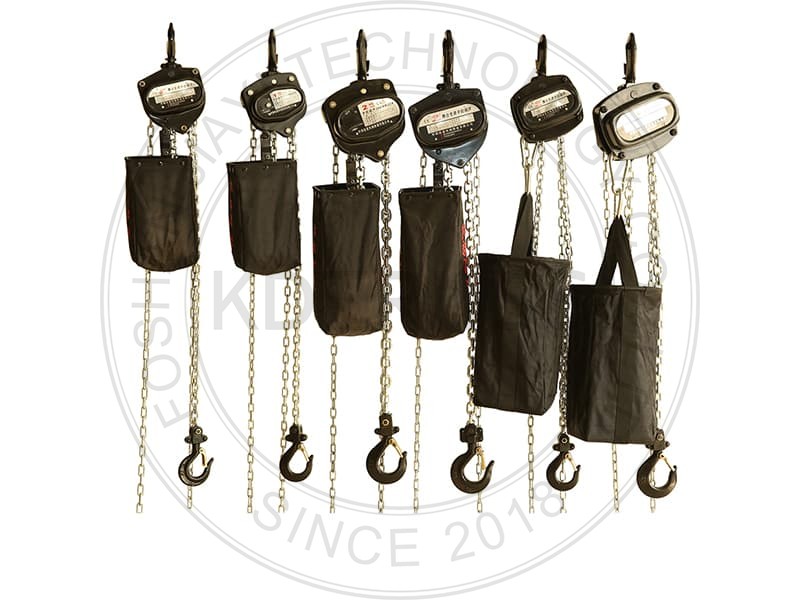

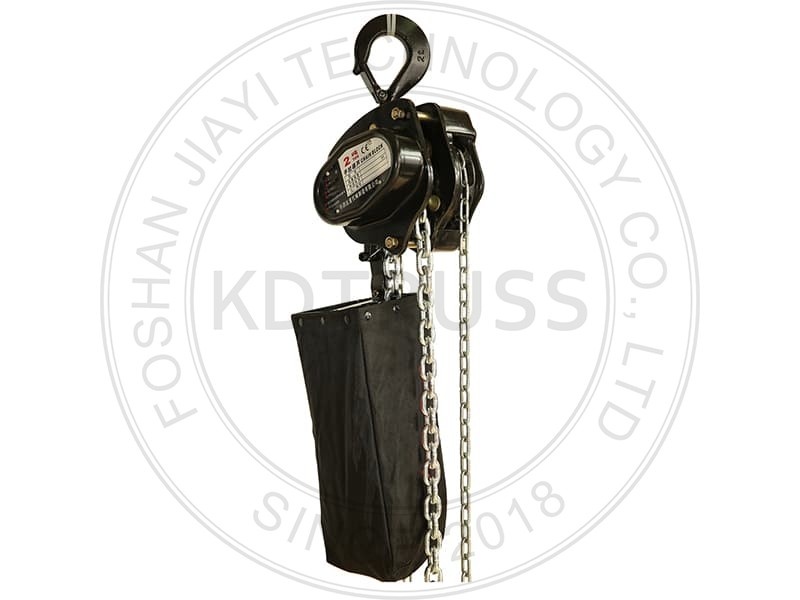

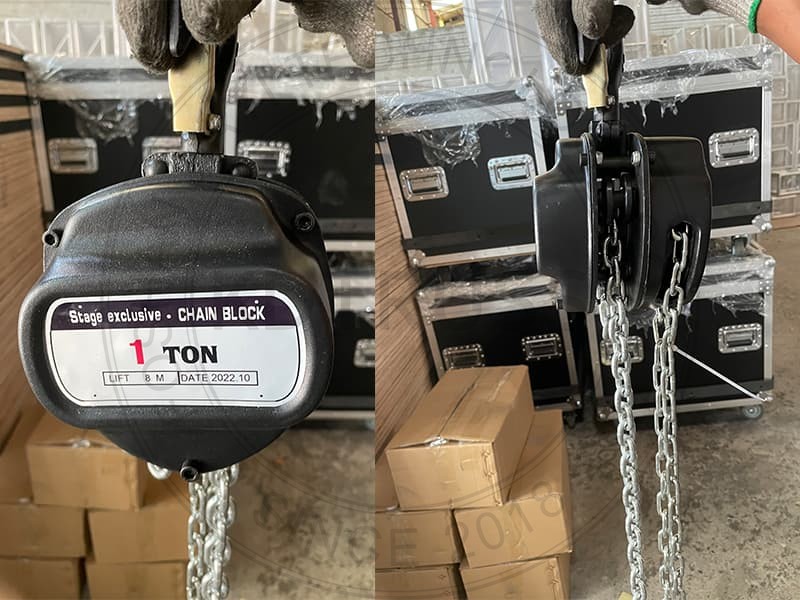

The Manual Chain Hoist With different length chain 6m, 8m, 10m and 12m are standard length in market. and it is handled with manual only.
Item No :
JY-chain blockOrder(MOQ) :
1piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :

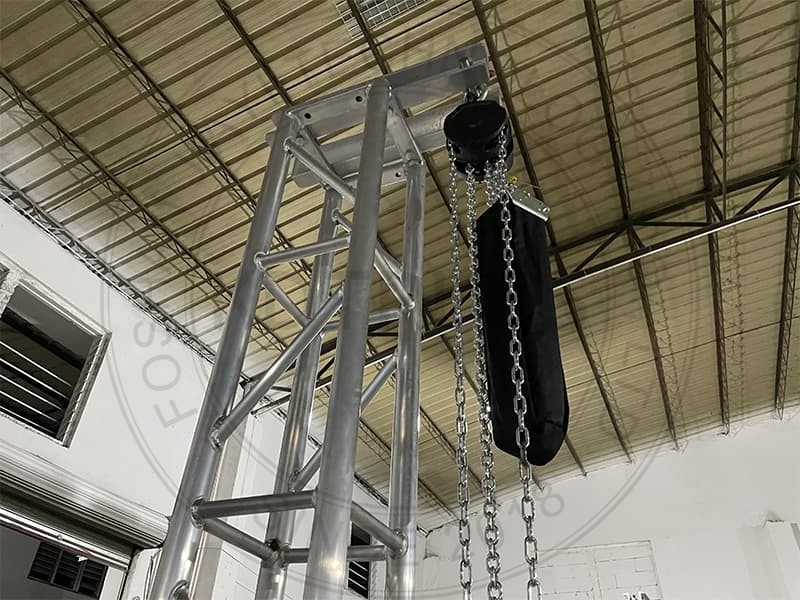

13.5kgThe chain block is commonly used in Mini and Medium Duty Stage Truss Structure for lifting the tower structure for performance. 1 Ton, 2Ton is popular in market. It is used to lift Truss Rigging for performance events. Other Loading capacity and chain length can be custom on request.
| Item | manual chain hoist |
| Material | Galvanized Steel |
| Capacity | 1 Ton, 2Ton |
| Chain lengths | 20 ft, 26 ft, 30 ft, 45 ft(Other length custom） |
| Diameter of the chain | 8 mm |
| Smallest Distance between the 2 hooks | 450 mm |
Feature:
Double pawl and automatic fail-safe brake device are safe and reliable.
Durable friction discs.
Equipped with a uniquely designed chain guide wheel.
The heat-treated large plate, various gears and long and short shafts have higher strength.
Hooks and chains are quenched and tempered.
The up and down hooks are forged and have safety latch.
The surface is treated with powder paint.
Chain surface galvanized treatment.
Lift with c mechanical load brake.
1. G80 chains are zinc galvanized finish for added resistance from corrosion and grime.
2. Loading-sharing gears makes lifting heavy loads much easy.
3. Equiped with Heavy-duty steel hooks with safety latch clasp who has complete 360-degrees rotation without any twisting and bending.
4. Rotating componets are mounted on roller ball bearings to reduce friction and increase refficiency.
5. Perfect application for entertainment industry, factories, construction,garage,workshops,ect.
6. Meets ASME B30.16 overhead hoists safety standards to ensure safety, and 2 years manufacturer warranty.
100*100mm Aluminum Lighting Mini Truss made of Aluminum Alloy 6082-T6. it is Lightweight easy to Assemble. Decorative Mini Truss can be used for any exhibition display booth or exhibit hall display for convention centers.
Read More
200*200mm Aluminum Exhibition Box Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Main tube is 30*2mm and Brace tube is 16*2mm. The Box trus system is a 4-point truss system. This truss offer an optimum lifting capacity and indicate a low transport volume with its light weight constroction. Conical connected system is convenient for assembly and collection. It is widely use in trade fair, Shop fitting and Advertisement ect.
Read More
290mm Lighting truss made of Aluminum Alloy 6061-T6 / 6082-T6. Aluminum Alloy itself very low in weight, easy to use, saving installation time and manpower. Aluminum is corrosion resistant, less maintenance, no corrosion protection required. and it can be reused becasue it has high corrosion resistance. Recycle materials , environmental protection. 290*290mm Aluminum spigot truss is multipurpose truss. It can be used in different areas. Such as Wedding party, Exhibition, theatre shows, musicals, trade show, activities and so on.
Read More
400mm Aluminum Roof Truss is a 4-point truss system. Our aluminum Trus system are designed for a variety of application and can by used to support lighting, sound equipment, cameras, digital signs, Stage constructiion, as well as the larger summit industry.
Read More
400*600mm Rectangle Heavy Duty Stage Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Bending stress resistand span is 20m, Max. loading capacity is 1000kg. Usually as beam truss.
Read More
520mm Outdoor Stage Roof Truss is is a kind of light-weight but strong products for event and exhibitions. It is widly used in lighting, sound, led screen and advertising board hanging.
Read More
Large-Scale performance Roof stage truss, also known as stage frame, lighting frame, space frame, is a structure formed by connecting rods with hinges at both ends.
Read More
