Stage Roof System
This Alumininum Pitched Stage Roof is a tower-based truss system structure with a pitched roof, a design that with 6 lifting towers to offers optimum strength. It is widely used and equipped with stage lighting and line array speaker system for concert stage entertainment.
Item No :
JY-TRUSS09Order(MOQ) :
1piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :
14.5kgThis Stage Truss with Triangular roof structure is featuring its heavy duty loading with big trusses 520X760mm as beams, 450*450mm Square Truss as pillars can reach 9m high. The Aluminum Roof Truss System is heavy duty and it can be flexible to extended to be 18m span for bigger outdoor concerts events as well.
When you want to set up a truss structure, you need think about your site limitation. indoor or outdoor? what size truss strcuture you want to set up? how long beam truss? how high pillar truss? Goal post shape ? Square shape? or Rectangle shape truss structure? with top roof or without top roof. Please let us know your requirements then our design team can help you design your draft.
| Item | Aluminum Truss Roof Frame with 3M Speaker Stands |
| Pillars | 450*450mm square truss |
| Beam | 760*520mm Rectangle heavy duty truss |
| Dimensions | 40*30ft/ 12*10m |
| Loading capacity | 16m span with 1500kg laoding capacity |
| Total weight | about 2000kg |
| Transporation volume | about 16 square meters |
| Color | Sliver / Black |
| Production time | 10-15days |
| HS code | 7610900000 |

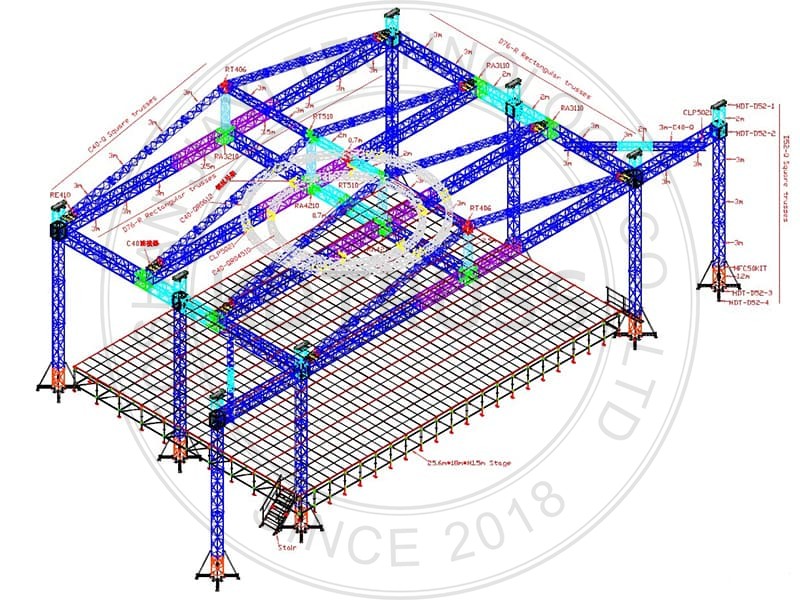

Above Truss Roof System include 6 pillars with 8m high, 16*14m beam truss with triangle top roof. truss cover portable stage. the truss roof design is popular in market.
We can offer different shape, size truss for your different event needs.
| Product Name | Spigot Truss, Bolt Truss, Global Truss, Thomas Truss, Roof Truss , Pre-Rigging truss, Stage Truss; Box truss; light truss stand; Layer truss; Aluminum truss; Lifting System |
| Truss Type |
Spigot Truss: 100x100mm, 220x220mm, 290x290mm, 400x400mm,520x520mm, 760*520mm,1010*610mm Etc Bolt Truss: 12''x12'' screw truss; Thomas Truss; Tomcat Truss; 400x400mm, 520*520mm Etc |
| Length | 0.5m/1.0m/1.5m/2.0m/2.5m/3.0m/3.5M; 1FT/2FT/3FT/4FT/5FT/6FT/8FT/10FT/12FT |
| Raw Material | Aluminum Pipe: EN AW 6082-T6/ 6061-T6 ; Welding rod: AlcoTec 5356/4043 |
| Truss Surface | Original Silver; Or Customized Color By Powder Coating & Anodizing; |
| Certificate | ISO 9001, ISO 3834; TUV Certificate, EN1090-1; EN1090-3; SGS certified |
| Section Shape | Ladder truss, Triangle truss , Square truss, Circular truss, Rectangle truss |
| Package | Carton, Trolley; Flight Case; Pallet |
| Application | Concert, Wedding, Ninja Warrior, Exhibition, Events for outdoor and indoor |
More products for your reference. if you nee more products information please contact us directly. will send catalogue and price list to you soon.
The Stage Roof Truss Structure is composed of multipurpose Box Truss 290*290mm as beams and pillars with right load-bearing capacity. It is modular and versatile, quick and easy to assemble and saving building time and labour cost. Besides, you can also extend it to be Pyramid roof, Arc Roof, ect.
Read More
Outdoor Event Lighting Truss available for rental and It is composed of multipurpose Box Truss as beams and pillars with right load-bearing capacity. Aluminum truss is widely used in all kinds of event and stage, it provides structure to hold lightings and other stage equipments. it is also the outdoor stage system main frame.
Read More
Outdoor Stage Sound Truss System 8m long, 5m deep and 5m high with 2 speaker wings tower 2m wide. Sound Truss System provides a substantial and adaptable platform for any large-scale event. Its impressive dimensions allow for expansive stage design and a wide array of lighting and sound equipment placement.
Read More
The Outdoor custom Screw Truss sizes 6m wide, 6m deep and 6m high bolt truss system offering a robust and adaptable solution for both temporary and semi-permanent lighting and staging needs.
Read More
4 Pillars Triangle Stage Roof system is mid sizes truss system, it's use for most of outdoor and indoor performance. Flexible structure depend your requirement. Fast install and reasonable design. Jiayi Lighting truss can make any size and special design Truss Structuref system for you.
Read More
13m*10m*5m Aluminum Pitch Roof Truss System with triangular-shaped trusses that support the weight of a pitched or sloping Stage Truss Roof. The Roof Trusses are designed to distribute the load evenly and efficiently, providing structural stability and strength to the Truss Roof.
Read More
13*11*9m Stage Trusses System can be used in a variety of high-traffic areas such as stage theatres, concerts, performing arts, or trade shows, arenas, and stadiums where stage performances are required. In short, Stage Trusses can help to create a better performance on stage.
Read More
The Pitched Roof Truss top of the stage will be covered with PVC tents to prevent the stage from being sunburnt and wet by rain.
Read More
just let us know what you need. will reply you soon.
