Layher Scaffolding Truss
The Aluminum Ladder Scaffolding set is lightweight, portable, and designed for high strength performance. It features excellent corrosion resistance, ensuring stability in outdoor and chemical environments, while its modular and foldable design allows easy transportation and storage. The Aluminum Frame Scaffolding requires low maintenance costs due to its durable oxidation layer and is highly recyclable, minimizing environmental impact.
Item No :
JY-Aluminum ScaffoldingOrder(MOQ) :
1 piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
SliverShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :

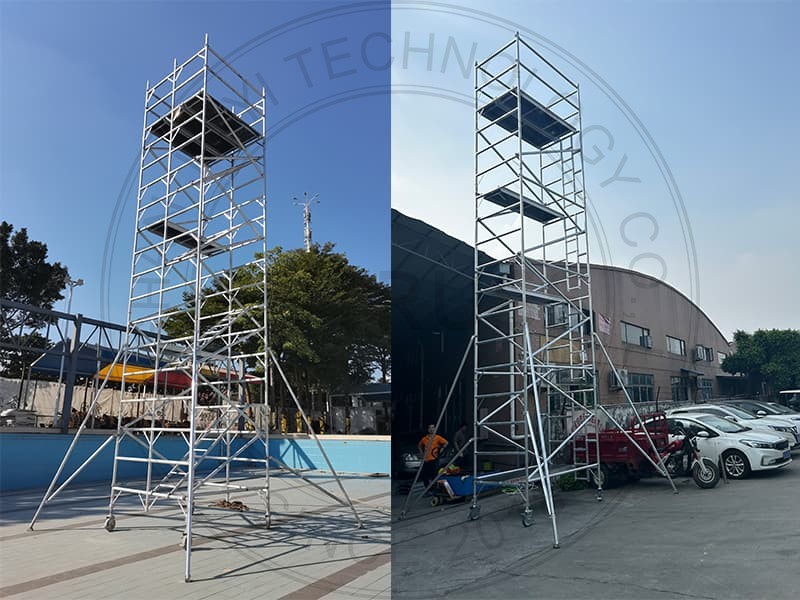

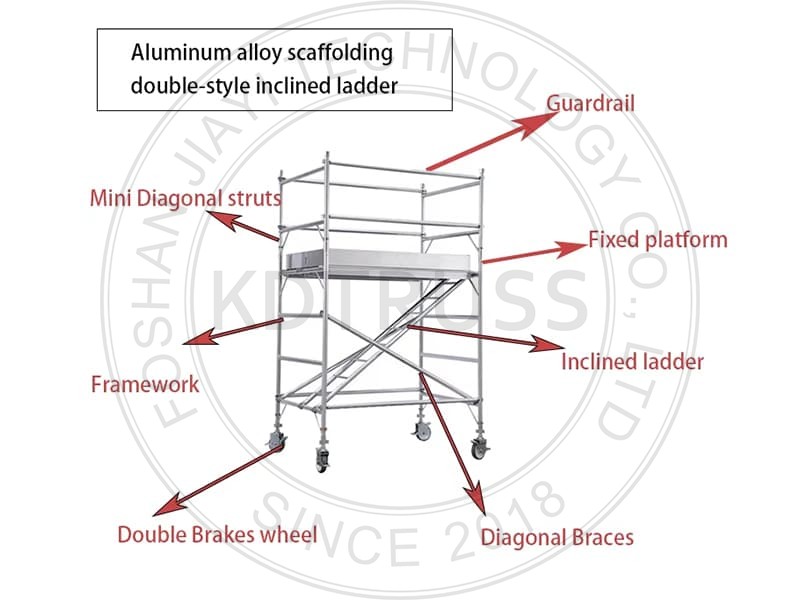

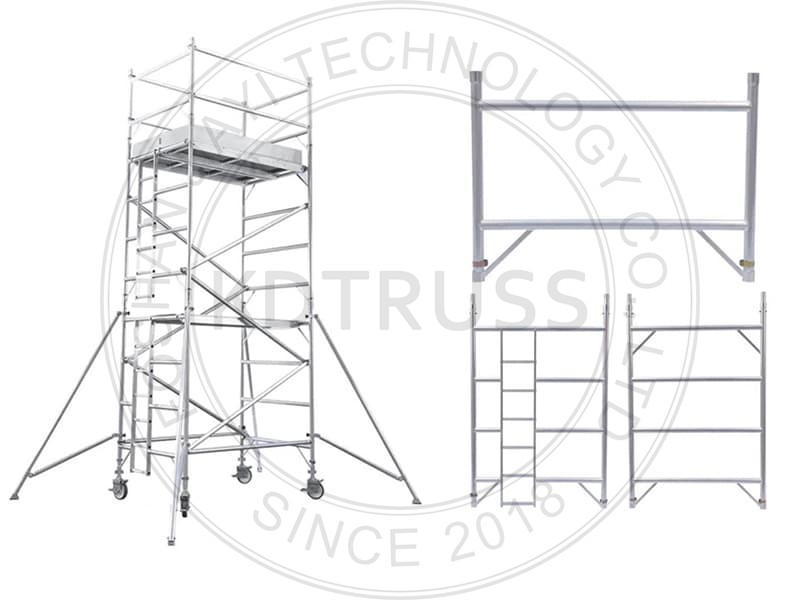

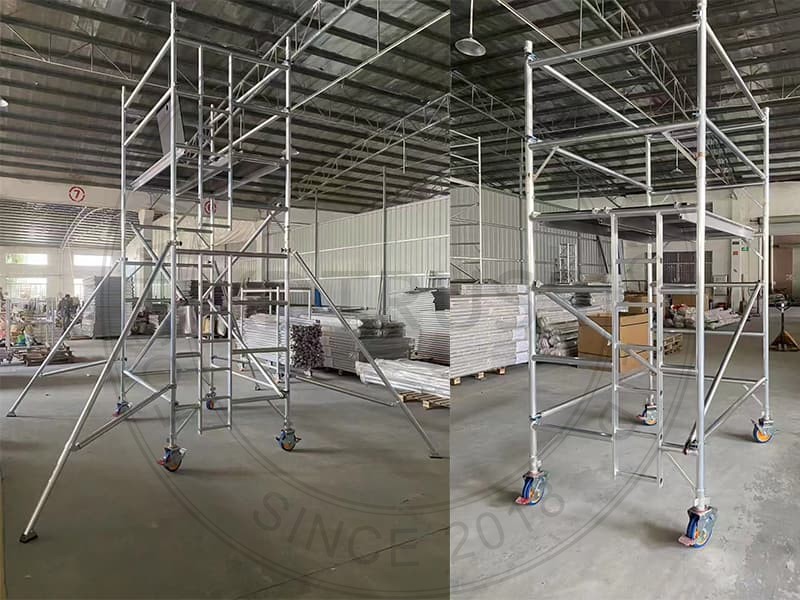

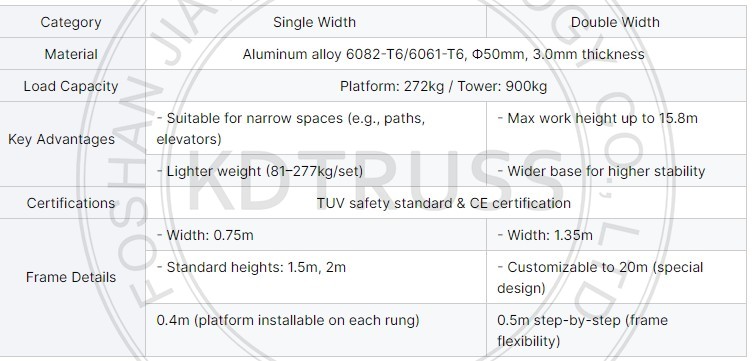

0.78kgThe Aluminium Mobile Scaffold Tower features a double ladder gate foldable frame, designed for maximum stability and portability. Made from high-strength aluminum alloy 6082-T6/6061-T6 with a 3.0mm thickness, it offers a load capacity of 272kg on the platform and 900kg on the tower. Suitable for narrow spaces, it provides a max work height of up to 15.8m and is lighter in weight (81–277kg/set).
| Aluminum Scaffolding Specifications | ||||||||
| Single Width (2×0.75m) Mobile Scaffolding (3m–10m) | ||||||||
| Tower Height | 3m | 4m | 5m | 6m | 7m | 8m | 9m | 10m |
| Platform Height | 2.1m | 3.1m | 4.1m | 5.1m | 6.1m | 7.1m | 8.1m | 9.1m |
| Work Height | 4.1m | 5.1m | 6.1m | 7.1m | 8.1m | 9.1m | 10.1m | 11.1m |
| Weight (per set, kg) | 81 | 113 | 139 | 175 | 187 | 219 | 223 | 277 |
| Volume (per set, m³) | 0.58 | 0.83 | 0.96 | 1.22 | 1.34 | 1.59 | 1.68 | 1.95 |
|
20GP Container Quantity |
45 | 30 | 25 | 20 | 18 | 15 | 15 | 13 |
|
40GP Container Quantity |
90 | 60 | 50 | 40 | 36 | 30 | 30 | 26 |
|

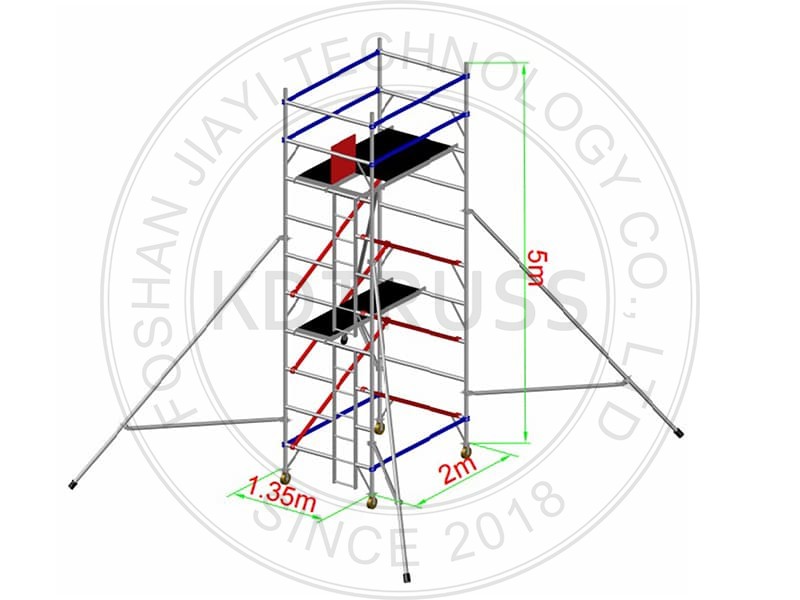

Double Width (2×1.35m) Mobile Scaffolding (3m–10m) |
||||||||
|
Tower Height |
3m | 4m | 5m | 6m | 7m | 8m | 9m | 10m |
|
Platform Height |
2.1m | 3.1m | 4.1m | 5.1m | 6.1m | 7.1m | 8.1m | 9.1m |
|
Work Height |
4.1m | 5.1m | 6.1m | 7.1m | 8.1m | 9.1m | 10.1m | 11.1m |
|
Weight (per set, kg) |
102 | 123 | 163 | 203 | 215 | 236 | 255 | 313 |
|
Volume (per set, m³) |
0.95 | 1.13 | 1.46 | 1.81 | 1.98 | 2.1 | 2.46 | 2.81 |
|
20GP Container Quantity |
25 | 20 | 15 | 15 | 13 | 13 | 12 | 10 |
|
40GP Container Quantity |
50 | 40 | 30 | 30 | 26 | 26 | 24 | 20 |

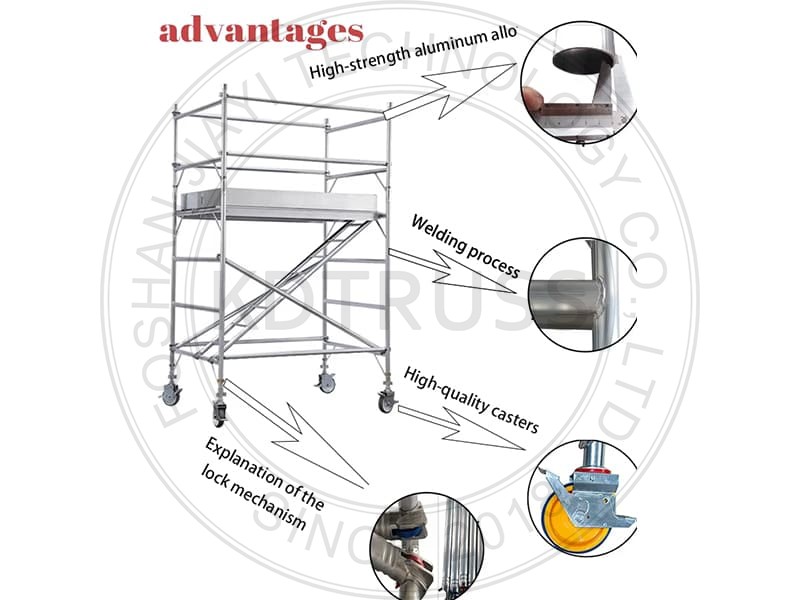

Advantages of Aluminum Scaffolding:
1. Excellent Portability: Aluminum scaffolding weighs only one-third as much as traditional scaffolding, allowing one person to easily carry and handle it.This reduces labor costs and physical exertion while improving assembly efficiency.
2. High Corrosion Resistance: Aluminum naturally forms a stable oxidation layer on its surface, providing strong resistance to moisture, acids, and alkalis. It is highly suitable for outdoor and chemical environments, as it resists rust and ensures structural stability.
3. Low Maintenance Costs: Thanks to its stable and corrosion-resistant properties, aluminum scaffolding does not require frequent rust removal or painting. This reduces both material and labor costs for upkeep, resulting in lower long-term expenses.
4. High Recyclability: Aluminum is a highly valuable recyclable material. When the scaffolding reaches the end of its service life, it can be efficiently recycled and reused, recovering most of the material cost. This minimizes resource waste and environmental impact.

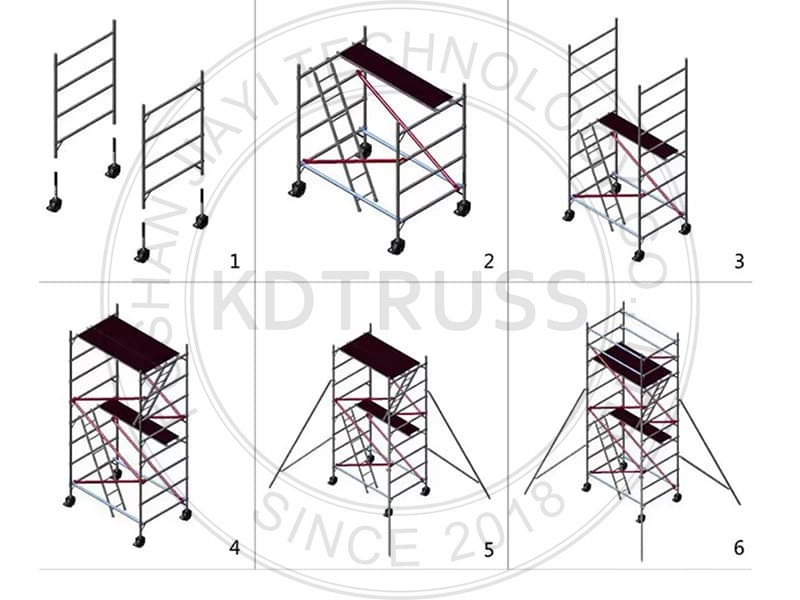

Aluminum Scaffold is easy to set up and transport.
If you need more Aluminum Scaffolding information you can what'sApp us 008613427679595 or send inquiry to us. we will reply you soon.
