Stage Roof System

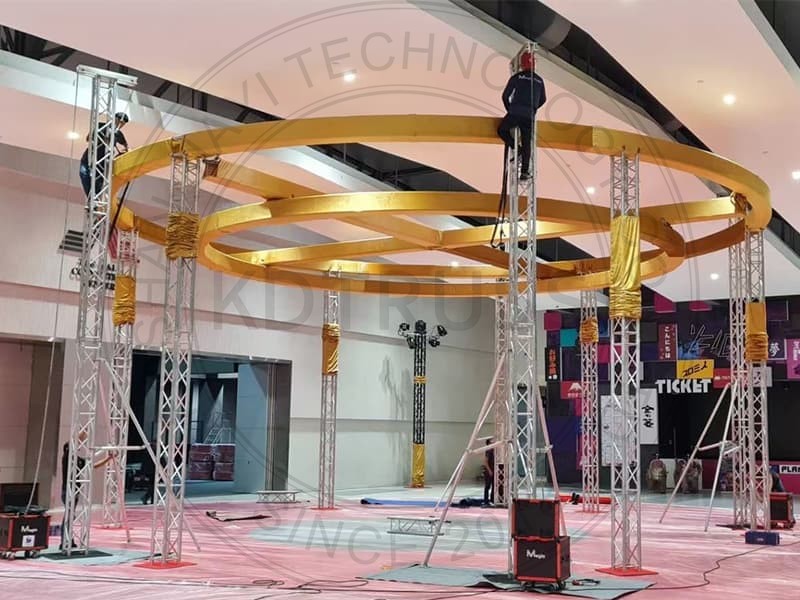

Round Roof Wedding Truss compression ring structure uses Curved Roof Trusses to shape Circular Trusses and is lifted by a system of four Ground Support Lifting Towers.
Item No :
JY-TRUSS02Order(MOQ) :
1piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :
930kgThe Round Roof Wedding Truss compression ring structure has several advantages.
The design is visually appealing and unique, making it ideal for special events like weddings. By using Curved Trusses to form Circular Trusses, the structure not only looks elegant but also provides structural integrity. The system of four Ground Support Lifting Towers makes it easy to set up and lift the structure, offering a convenient and efficient solution for event organizers.
The design of this dome wedding truss compression ring structure has the following advantages:
1. Unique beauty: The Circular Truss Structure looks unique in the wedding scene, attracting attention and showing a unique design charm.
2. Strong stability: Through the design of the Curved Top Truss Roof, the stability and wind resistance of the overall structure are enhanced, making it stronger and more solid.
3. High space utilization: The circular design can effectively use the space, providing a larger space for activities, making guests more comfortable in the interior.
4. Easy to set up and disassemble: With a system of four Ground Support Towers, the dome structure is more convenient and faster, saving time and costs.
5. Wide Applicability: Suitable for various wedding themes and venues, providing a unique and versatile venue for events.
| Item | Curved Top Truss Roof |
| Pillars | 290*290mm /300*300mm Square Truss |
| Beam | 290*290mm / 300*300mm Circle Truss |
| Diameter | 3m-12m |
| Loading capacity | 10m span with 950kg laoding capacity |
| Total weight | about 1000kg |
| Transporation volume | about 7.5 square meters |
| Color | Sliver / Black |
| Production time | 10-15days |
| HS code | 7610900000 |
When you want to set up a truss structure, you need think about your site limitation. indoor or outdoor? what size truss strcuture you want to set up? how long beam truss? how high pillar truss? Goal post shape ? Square shape? or Rectangle shape truss structure? with top roof or without top roof. Please let us know your requirements then our design team can help you design your draft.
We can offer different shape, size truss for your different event needs.
| Product Name | Spigot Truss, Bolt Truss, Global Truss, Thomas Truss, Roof Truss , Pre-Rigging truss, Stage Truss; Box truss; light truss stand; Layer truss; Aluminum truss; Lifting System |
| Truss Type |
Spigot Truss: 100x100mm, 220x220mm, 290x290mm, 400x400mm,520x520mm, 760*520mm,1010*610mm Etc Bolt Truss: 12''x12'' screw truss; Thomas Truss; Tomcat Truss; 400x400mm, 520*520mm Etc |
| Length | 0.5m/1.0m/1.5m/2.0m/2.5m/3.0m/3.5M; 1FT/2FT/3FT/4FT/5FT/6FT/8FT/10FT/12FT |
| Raw Material | Aluminum Pipe: EN AW 6082-T6/ 6061-T6 ; Welding rod: AlcoTec 5356/4043 |
| Truss Surface | Original Silver; Or Customized Color By Powder Coating & Anodizing; |
| Certificate | ISO 9001, ISO 3834; TUV Certificate, EN1090-1; EN1090-3; SGS certified |
| Section Shape | Ladder truss, Triangle truss , Square truss, Circular truss, Rectangle truss |
| Package | Carton, Trolley; Flight Case; Pallet |
| Application | Concert, Wedding, Ninja Warrior, Exhibition, Events for outdoor and indoor |
More products for your reference. if you nee more products information please contact us directly. will send catalogue and price list to you soon.
100*100mm Aluminum Lighting Mini Truss made of Aluminum Alloy 6082-T6. it is Lightweight easy to Assemble. Decorative Mini Truss can be used for any exhibition display booth or exhibit hall display for convention centers.
Read More
200*200mm Aluminum Exhibition Box Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Main tube is 30*2mm and Brace tube is 16*2mm. The Box trus system is a 4-point truss system. This truss offer an optimum lifting capacity and indicate a low transport volume with its light weight constroction. Conical connected system is convenient for assembly and collection. It is widely use in trade fair, Shop fitting and Advertisement ect.
Read More
290mm Lighting truss made of Aluminum Alloy 6061-T6 / 6082-T6. Aluminum Alloy itself very low in weight, easy to use, saving installation time and manpower. Aluminum is corrosion resistant, less maintenance, no corrosion protection required. and it can be reused becasue it has high corrosion resistance. Recycle materials , environmental protection. 290*290mm Aluminum spigot truss is multipurpose truss. It can be used in different areas. Such as Wedding party, Exhibition, theatre shows, musicals, trade show, activities and so on.
Read More
400mm Aluminum Roof Truss is a 4-point truss system. Our aluminum Trus system are designed for a variety of application and can by used to support lighting, sound equipment, cameras, digital signs, Stage constructiion, as well as the larger summit industry.
Read More
400*600mm Rectangle Heavy Duty Stage Truss made of Aluminum Alloy 6061-T6 / 6082-T6. Bending stress resistand span is 20m, Max. loading capacity is 1000kg. Usually as beam truss.
Read More
520mm Outdoor Stage Roof Truss is is a kind of light-weight but strong products for event and exhibitions. It is widly used in lighting, sound, led screen and advertising board hanging.
Read More
Large-Scale performance Roof stage truss, also known as stage frame, lighting frame, space frame, is a structure formed by connecting rods with hinges at both ends.
Read More
just let us know what you need. will reply you soon.
