Aluminum Stage Structure Pitched Roof Truss is a tower-based, triangular-shaped aluminum structure used to create a covered stage for concerts, festivals, and other outdoor events.
Item No :
JY-TRUSS18Order(MOQ) :
1piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :

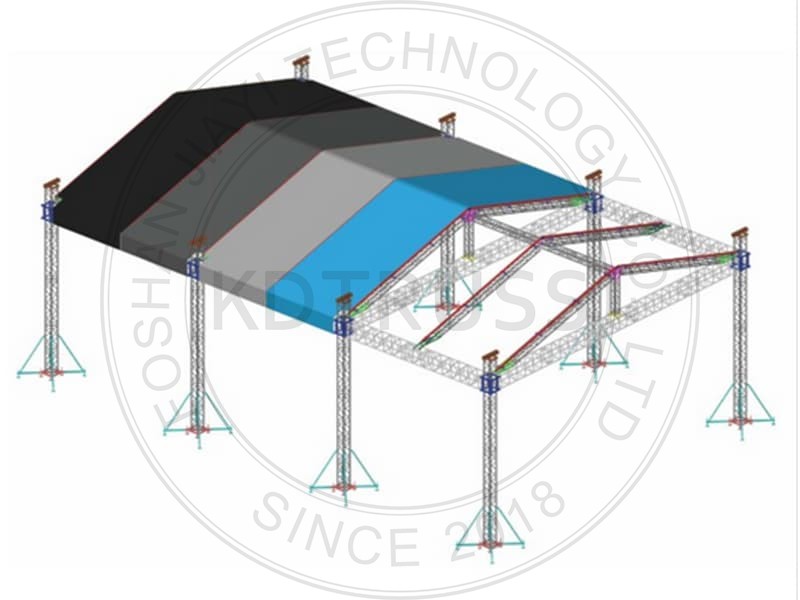

8.6kgThis Stage Roof Truss System is extended from Box Truss 24x24m, and equiped with stage canopy rooftop.
The Pitched Roof Truss main feature is the elevated, sloping roof, which allows for efficient drainage of rainwater and snow, a crucial aspect for outdoor events.

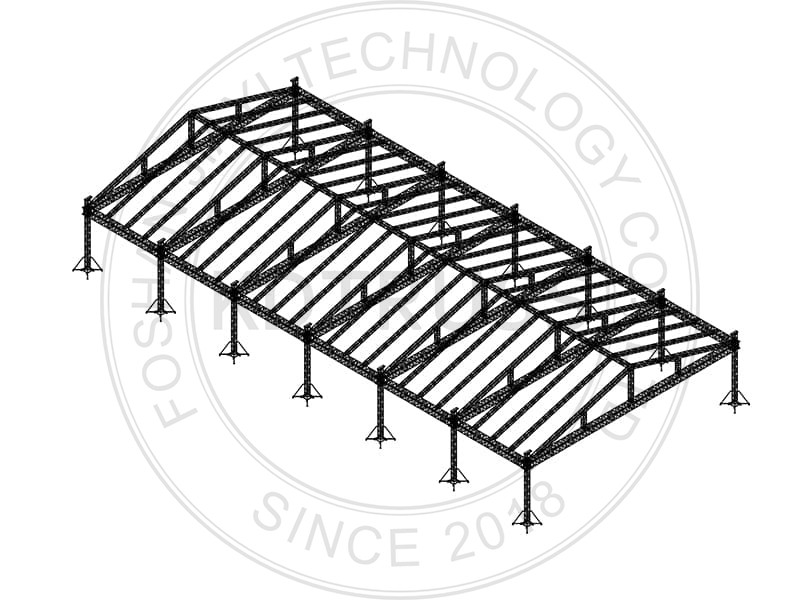

The Aluminum Pitched Roofing Concert Truss System is built from modular Heavy Duty Truss segments.
Stage Roof Truss System Concert Trusses are a professional choice for a variety of large-scale events.
How to set up a Stage Roof Truss? what do you need thibk about?
When you want to set up a truss structure, you need think about your site limitation. indoor or outdoor?
what size truss strcuture you want to set up?
how long beam truss?
how high pillar truss? Goal post shape ? Square shape? or Rectangle shape truss structure?
with top roof or without top roof?
Please let us know your requirements then our design team can help you design your draft.
Item | Stage Truss System |
Pillars | 290*290mm /300*300mm square truss |
Beam | 290*290mm / 300*300mm medium duty truss |
Dimensions | 40*30ft/ 12*10m |
Loading capacity | 12m span with 850kg laoding capacity |
Total weight | about 1000kg |
Transporation volume | about 12 square meters |
Color | Sliver / Black |
Production time | 10-15days |
HS code | 7610900000 |
We can offer different shape, size truss for your different event needs.
Product Name | Spigot Truss, Bolt Truss, Global Truss, Thomas Truss, Roof Truss , Pre-Rigging truss, Stage Truss; Box truss; light truss stand; Layer truss; Aluminum truss; Lifting System |
Truss Type |
Spigot Truss: 100x100mm, 220x220mm, 290x290mm, 400x400mm,520x520mm, 760*520mm,1010*610mm Etc Bolt Truss: 12''x12'' screw truss; Thomas Truss; Tomcat Truss; 400x400mm, 520*520mm Etc |
Length | 0.5m/1.0m/1.5m/2.0m/2.5m/3.0m/3.5M; 1FT/2FT/3FT/4FT/5FT/6FT/8FT/10FT/12FT |
Raw Material | Aluminum Pipe: EN AW 6082-T6/ 6061-T6 ; Welding rod: AlcoTec 5356/4043 |
Truss Surface | Original Silver; Or Customized Color By Powder Coating & Anodizing; |
Certificate | ISO 9001, ISO 3834; TUV Certificate, EN1090-1; EN1090-3; SGS certified |
Section Shape | Ladder truss, Triangle truss , Square truss, Circular truss, Rectangle truss |
Package | Carton, Trolley; Flight Case; Pallet |
Application | Concert, Wedding, Ninja Warrior, Exhibition, Events for outdoor and indoor |
Why We Choose Aluminum Alloy?
Aluminum Alloy is a popular choice for Stage Truss Systems due to its numerous advantages:
Lightweight: Aluminum Alloy is significantly lighter than traditional materials like steel, making it easier to transport and assemble.
Durable: Aluminum Alloy is highly resistant to corrosion and weather damage, ensuring long-term reliability even in outdoor environments.
Recyclable: Aluminum Alloy is 100% recyclable, making it an environmentally friendly choice.Aesthetic
Appeal: Aluminum Alloy has a sleek, modern appearance that can enhance the visual impact of any event setup.
More products for your reference. if you nee more products information please contact us directly. will send catalogue and price list to you soon.
