Stage Roof System
Can we use 10m*8m*6m Pitch Roof Truss Structure to set up 8*6*6m stage truss system? This idea is feasible and a common strategy in large-scale event setup to save equipment costs and setup time.
Item No :
JY-TRUSS16Order(MOQ) :
1piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :
8.6kgSame height pillar: 1m+2m+3m standard 290*290mm square box truss.10m*8m span need choose 400*400mm Box Truss to add loading capacity. 8m*6m span we can keep same 400*400mm truss. Usually designer will design 10*8*6m roof truss structure first then can reduce some truss to set up 8*6*6m Roof Truss Strutcure. The top roof connector can adjust the degrees to keep 10*8m and 8*6m.
Dimensions : 10*8 M
Loading capacity (UDL) : 4500 kg
Total weight : 2100 kg
Transportation volume : 32 cbm
Max. wind speed : 28.4 m/second, 63.3 mph
Dimensions : 8*6 M
Loading capacity (UDL) : 5200 kg
Total weight : 1800 kg
Transportation volume : 28 cbm
Max. wind speed : 32.6 m/second, 68.4 mph
When you want to set up a truss structure, you must think below factors:
Loading Capacity: This is The most critical factor. The total weight of all equipment (lights, cabling, clamps) hanging from the truss MUST be well below the Maximum Working Load (MWL) specified by the truss manufacturer for the specific configuration and span lengths. NEVER EXCEED THE MWL. Consider both point loads (heavy fixtures) and distributed loads.
Wind Loading: If used outdoors, wind can exert significant force. Additional bracing, ballast (weight like water barrels or sandbags), or ground anchoring is essential. MWL decreases significantly in windy conditions.
Manufacturer Specifications: Always follow the specific assembly instructions, load charts, and safety guidelines provided by the truss manufacturer.
Please let us know your requirements then our design team can help you design your draft.
| Item | Aluminum Pitched Roof Lighting Truss |
| Pillars | 290*290mm /300*300mm square truss |
| Beam | 290*290mm / 300*300mm medium duty truss |
| Dimensions | 8*4m |
| Loading capacity | 12m span with 850kg laoding capacity |
| Total weight | about 1000kg |
| Transporation volume | about 12 square meters |
| Color | Sliver / Black |
| Production time | 10-15days |
| HS code | 7610900000 |
We can offer different shape, size truss for your different event needs.
| Product Name | Spigot Truss, Bolt Truss, Global Truss, Thomas Truss, Roof Truss , Pre-Rigging truss, Stage Truss; Box truss; light truss stand; Layer truss; Aluminum truss; Lifting System |
| Truss Type |
Spigot Truss: 100x100mm, 220x220mm, 290x290mm, 400x400mm,520x520mm, 760*520mm,1010*610mm Etc Bolt Truss: 12''x12'' screw truss; Thomas Truss; Tomcat Truss; 400x400mm, 520*520mm Etc |
| Length | 0.5m/1.0m/1.5m/2.0m/2.5m/3.0m/3.5M; 1FT/2FT/3FT/4FT/5FT/6FT/8FT/10FT/12FT |
| Raw Material | Aluminum Pipe: EN AW 6082-T6/ 6061-T6 ; Welding rod: AlcoTec 5356/4043 |
| Truss Surface | Original Silver; Or Customized Color By Powder Coating & Anodizing; |
| Certificate | ISO 9001, ISO 3834; TUV Certificate, EN1090-1; EN1090-3; SGS certified |
| Section Shape | Ladder truss, Triangle truss , Square truss, Circular truss, Rectangle truss |
| Package | Carton, Trolley; Flight Case; Pallet |
| Application | Concert, Wedding, Ninja Warrior, Exhibition, Events for outdoor and indoor |
Aluminum Pitched Roof Lighting Truss is the tower-based truss structure without rings, which consists of truss sections,top section,sleeve block,basement, and hoists. It features incredible strength,stability and speedy construction,and is the best choice for rental companies.
Why We Choose Aluminum Alloy?
Aluminum Alloy is a popular choice for Stage Truss Systems due to its numerous advantages:
Lightweight: Aluminum Alloy is significantly lighter than traditional materials like steel, making it easier to transport and assemble.
Durable: Aluminum Alloy is highly resistant to corrosion and weather damage, ensuring long-term reliability even in outdoor environments.
Recyclable: Aluminum Alloy is 100% recyclable, making it an environmentally friendly choice.Aesthetic
Appeal: Aluminum Alloy has a sleek, modern appearance that can enhance the visual impact of any event setup.
More products for your reference. if you nee more products information please contact us directly. will send catalogue and price list to you soon.
The Stage Roof Truss Structure is composed of multipurpose Box Truss 290*290mm as beams and pillars with right load-bearing capacity. It is modular and versatile, quick and easy to assemble and saving building time and labour cost. Besides, you can also extend it to be Pyramid roof, Arc Roof, ect.
Read More
Outdoor Event Lighting Truss available for rental and It is composed of multipurpose Box Truss as beams and pillars with right load-bearing capacity. Aluminum truss is widely used in all kinds of event and stage, it provides structure to hold lightings and other stage equipments. it is also the outdoor stage system main frame.
Read More

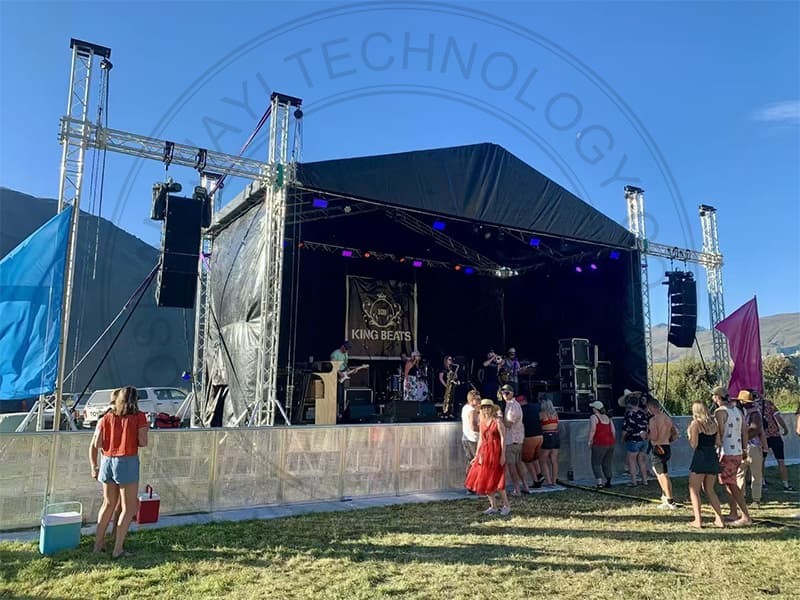

Outdoor Stage Sound Truss System 8m long, 5m deep and 5m high with 2 speaker wings tower 2m wide. Sound Truss System provides a substantial and adaptable platform for any large-scale event. Its impressive dimensions allow for expansive stage design and a wide array of lighting and sound equipment placement.
