Stage Roof System
8m*4m*6m is a Rectangular Truss Structure commonly used for concert stages, events, and productions to support lighting, sound, and effects equipment.
Item No :
JY-TRUSS13Order(MOQ) :
1piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysWeight :
8.6kgAluminum Lighting Truss System is the tower-based truss structure without rings.
Lighting Truss System Dimensions:
8m: Length (3m+3m+2m).
4m: Depth (2m+2m).
6m: Height (1m+2m+3m).
Lighting Truss System implies it's designed primarily to hang stage lighting fixtures (PAR cans, moving heads, LED panels, etc.), but it can also support speakers, video screens, or drape.

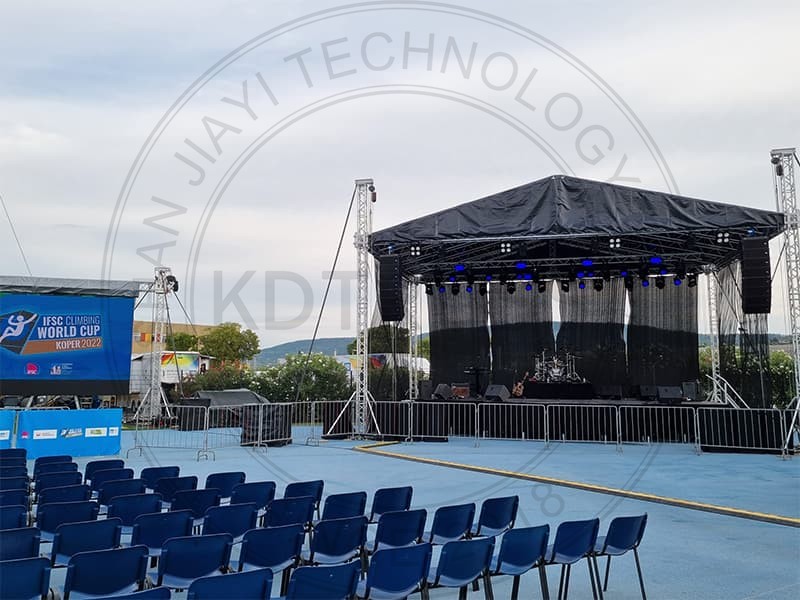

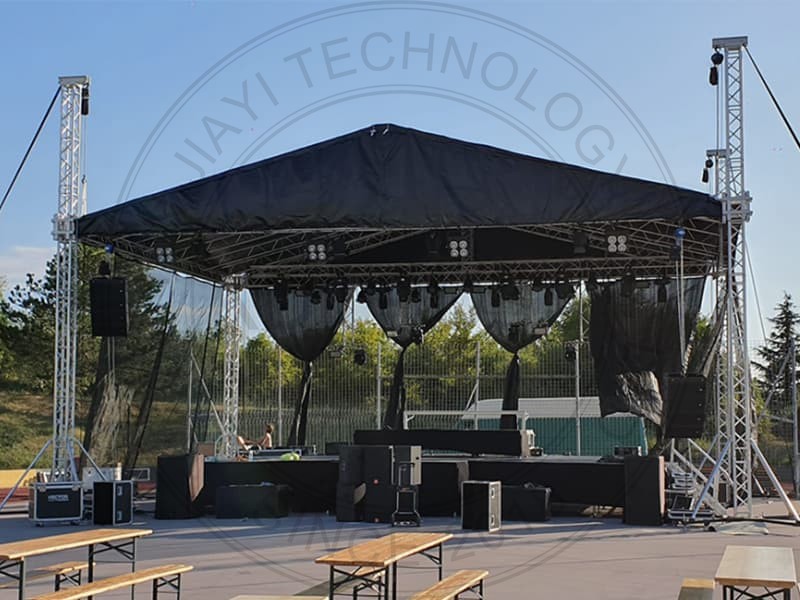

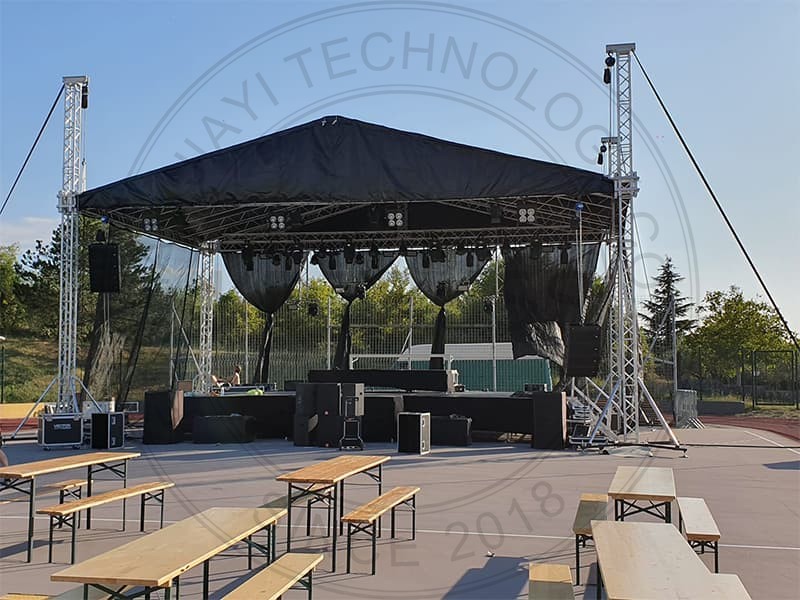

The Pitched Stage Lighting Truss System is the most commonly used solution for shading and rain protection. The span of this structure can reach even 24M according to the beams and pillars changing, like the photo A above. The maximum span can reach the size of A in the 24M picture. Generally, the span of 290*290mm is below 16M, the span of 400*400mm is below 20M, and the span of 520*520mm is below 24M. The roofing truss systems are ideal solutions for mega-concerts,festivals,parties and other outdoor big events.This roof truss roof system features compact construction, optimum strength, high-tech appearance and outstanding weight loading capacities.
When you want to set up a truss structure, you must think below factors:
Loading Capacity: This is The most critical factor. The total weight of all equipment (lights, cabling, clamps) hanging from the truss MUST be well below the Maximum Working Load (MWL) specified by the truss manufacturer for the specific configuration and span lengths. NEVER EXCEED THE MWL. Consider both point loads (heavy fixtures) and distributed loads.
Wind Loading: If used outdoors, wind can exert significant force. Additional bracing, ballast (weight like water barrels or sandbags), or ground anchoring is essential. MWL decreases significantly in windy conditions.
Manufacturer Specifications: Always follow the specific assembly instructions, load charts, and safety guidelines provided by the truss manufacturer.
Please let us know your requirements then our design team can help you design your draft.
| Item | Aluminum Pitched Roof Lighting Truss |
| Pillars | 290*290mm /300*300mm square truss |
| Beam | 290*290mm / 300*300mm medium duty truss |
| Dimensions | 8*4m |
| Loading capacity | 12m span with 850kg laoding capacity |
| Total weight | about 1000kg |
| Transporation volume | about 12 square meters |
| Color | Sliver / Black |
| Production time | 10-15days |
| HS code | 7610900000 |
We can offer different shape, size truss for your different event needs.
| Product Name | Spigot Truss, Bolt Truss, Global Truss, Thomas Truss, Roof Truss , Pre-Rigging truss, Stage Truss; Box truss; light truss stand; Layer truss; Aluminum truss; Lifting System |
| Truss Type |
Spigot Truss: 100x100mm, 220x220mm, 290x290mm, 400x400mm,520x520mm, 760*520mm,1010*610mm Etc Bolt Truss: 12''x12'' screw truss; Thomas Truss; Tomcat Truss; 400x400mm, 520*520mm Etc |
| Length | 0.5m/1.0m/1.5m/2.0m/2.5m/3.0m/3.5M; 1FT/2FT/3FT/4FT/5FT/6FT/8FT/10FT/12FT |
| Raw Material | Aluminum Pipe: EN AW 6082-T6/ 6061-T6 ; Welding rod: AlcoTec 5356/4043 |
| Truss Surface | Original Silver; Or Customized Color By Powder Coating & Anodizing; |
| Certificate | ISO 9001, ISO 3834; TUV Certificate, EN1090-1; EN1090-3; SGS certified |
| Section Shape | Ladder truss, Triangle truss , Square truss, Circular truss, Rectangle truss |
| Package | Carton, Trolley; Flight Case; Pallet |
| Application | Concert, Wedding, Ninja Warrior, Exhibition, Events for outdoor and indoor |

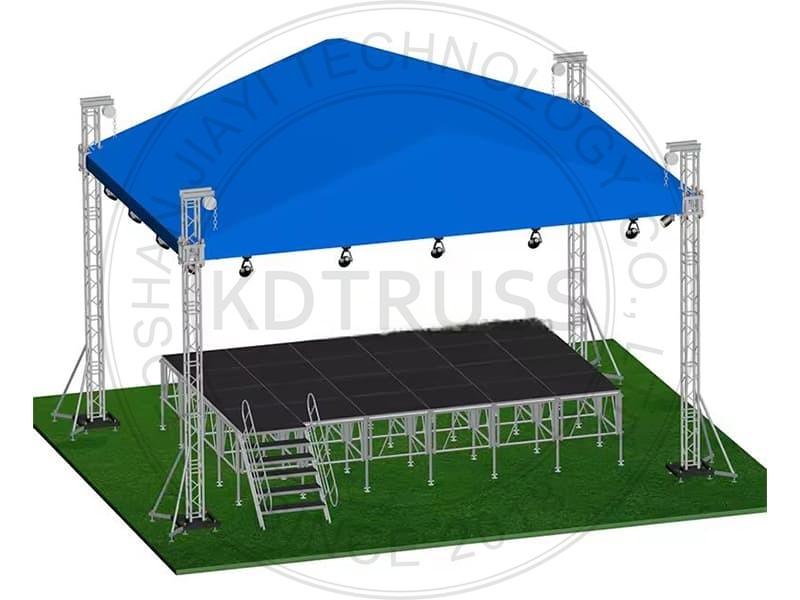

Aluminum Pitched Roof Lighting Truss is the tower-based truss structure without rings, which consists of truss sections,top section,sleeve block,basement, and hoists. It features incredible strength,stability and speedy construction,and is the best choice for rental companies.
Why We Choose Aluminum Alloy?
Aluminum Alloy is a popular choice for Stage Truss Systems due to its numerous advantages:
Lightweight: Aluminum Alloy is significantly lighter than traditional materials like steel, making it easier to transport and assemble.
Durable: Aluminum Alloy is highly resistant to corrosion and weather damage, ensuring long-term reliability even in outdoor environments.
Recyclable: Aluminum Alloy is 100% recyclable, making it an environmentally friendly choice.Aesthetic
Appeal: Aluminum Alloy has a sleek, modern appearance that can enhance the visual impact of any event setup.
