Stage Roof System

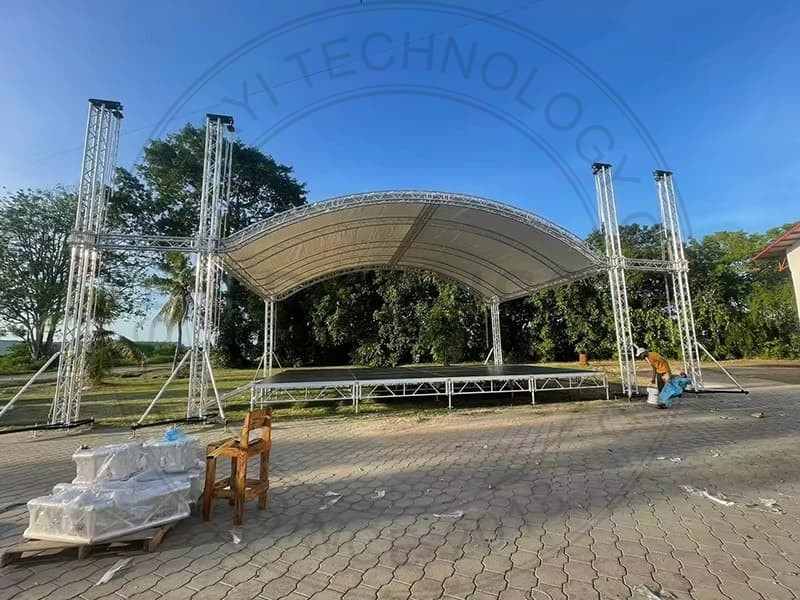

The Curved Roof Truss designed to cover stage 12 x 10 m (39 x 32 ft) with 2m wings for hanging line array speakers.
Item No :
JY-TRUSS11Order(MOQ) :
1piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysThe Truss Roof Designs consists of four arches each made of 4 circle segments that are attached to the side beams through specially designed fixed corners. From the structural point of view the arches, in general, represent the strongest solution of support.
Used Truss:
Beam Truss - box truss with 400x 400mm outside dimensions, main pipe Ø 50 x 3 mm, braces Ø 25 x 2 mm. The alloy used as material for the pipes is EN AW-6082 T6.
Pillar truss - Square truss with 290 x 290 mm outside dimensions, main pipe Ø 50 x 3 mm (2 x 0.12 in), braces Ø 20 x 2 mm (0.8 x 0.08 in). The alloy used as material for the pipes is EN AW-6082 T6.
Feature:
Just install the system with your standard square straight and curved trusses
Spigot connection offering your fast and easy install.
Aluminium lightweight Stage Lighting truss portable for exhibitions and trade shows.
TUV and SGS certificate.

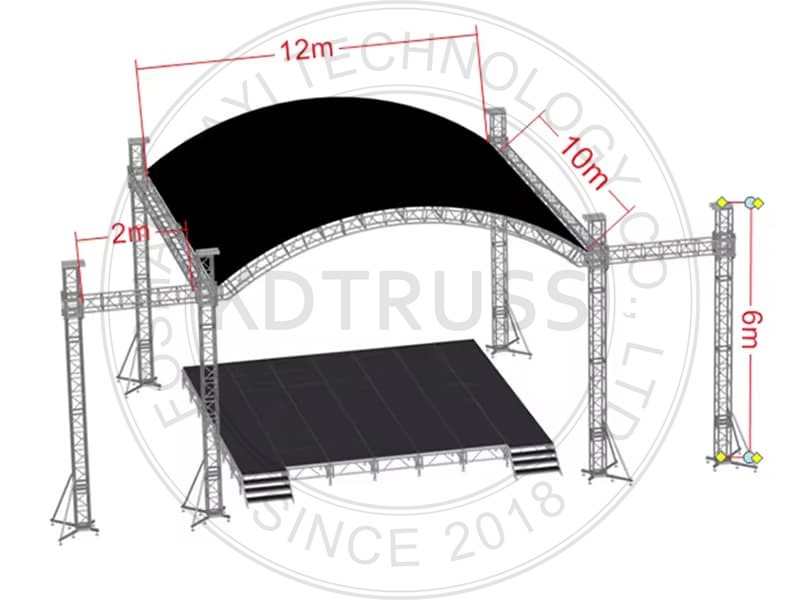

Above truss roof system include 6 pillars with 6m high, 12m*10m beam truss with Curved top roof. truss cover portable stage. the truss roof design is popular in market.
We can offer different shape, size truss for your different event needs.
| Product Name | Spigot Truss, Bolt Truss, Global Truss, Thomas Truss, Roof Truss , Pre-Rigging truss, Stage Truss; Box truss; light truss stand; Layer truss; Aluminum truss; Lifting System |
| Truss Type |
Spigot Truss: 100x100mm, 220x220mm, 290x290mm, 400x400mm,520x520mm, 760*520mm,1010*610mm Etc Bolt Truss: 12''x12'' screw truss; Thomas Truss; Tomcat Truss; 400x400mm, 520*520mm Etc |
| Length | 0.5m/1.0m/1.5m/2.0m/2.5m/3.0m/3.5M; 1FT/2FT/3FT/4FT/5FT/6FT/8FT/10FT/12FT |
| Raw Material | Aluminum Pipe: EN AW 6082-T6/ 6061-T6 ; Welding rod: AlcoTec 5356/4043 |
| Truss Surface | Original Silver; Or Customized Color By Powder Coating & Anodizing; |
| Certificate | ISO 9001, ISO 3834; TUV Certificate, EN1090-1; EN1090-3; SGS certified |
| Section Shape | Ladder truss, Triangle truss , Square truss, Circular truss, Rectangle truss |
| Package | Carton, Trolley; Flight Case; Pallet |
| Application | Concert, Wedding, Ninja Warrior, Exhibition, Events for outdoor and indoor |
The Stage Roof Truss Structure is composed of multipurpose Box Truss 290*290mm as beams and pillars with right load-bearing capacity. It is modular and versatile, quick and easy to assemble and saving building time and labour cost. Besides, you can also extend it to be Pyramid roof, Arc Roof, ect.
