Stage Roof System

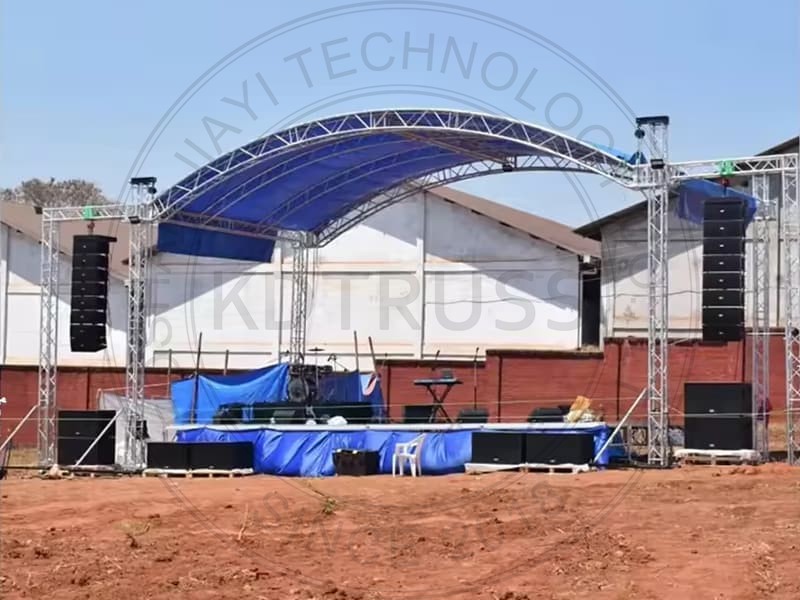

The whole Stage Truss System is 14*10*7m, 6 tower-based with Arc Roof shape, and just simply hang your Line Array Speakers at the right and left on the front beam,.
Item No :
JY-TRUSS14Order(MOQ) :
1piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysAluminum Arched Stage Truss System for Hanging Speakers
Used Truss:
Beam Truss - box truss with 290x 290mm outside dimensions, main pipe Ø 50 x 3 mm, braces Ø 20 x 2 mm. The alloy used as material for the pipes is EN AW-6082 T6.
Pillar truss - Square truss with 290 x 290 mm outside dimensions, main pipe Ø 50 x 3 mm (2 x 0.12 in), braces Ø 20 x 2 mm (0.8 x 0.08 in). The alloy used as material for the pipes is EN AW-6082 T6.
Feature:
Just install the system with your standard square straight and curved trusses
Spigot connection offering your fast and easy install.
Aluminium lightweight Stage Lighting truss portable for exhibitions and trade shows.
TUV and SGS certificate.
We can offer different shape, size truss for your different event needs.
| Product Name | Spigot Truss, Bolt Truss, Global Truss, Thomas Truss, Roof Truss , Pre-Rigging truss, Stage Truss; Box truss; light truss stand; Layer truss; Aluminum truss; Lifting System |
| Truss Type |
Spigot Truss: 100x100mm, 220x220mm, 290x290mm, 400x400mm,520x520mm, 760*520mm,1010*610mm Etc Bolt Truss: 12''x12'' screw truss; Thomas Truss; Tomcat Truss; 400x400mm, 520*520mm Etc |
| Length | 0.5m/1.0m/1.5m/2.0m/2.5m/3.0m/3.5M; 1FT/2FT/3FT/4FT/5FT/6FT/8FT/10FT/12FT |
| Raw Material | Aluminum Pipe: EN AW 6082-T6/ 6061-T6 ; Welding rod: AlcoTec 5356/4043 |
| Truss Surface | Original Silver; Or Customized Color By Powder Coating & Anodizing; |
| Certificate | ISO 9001, ISO 3834; TUV Certificate, EN1090-1; EN1090-3; SGS certified |
| Section Shape | Ladder truss, Triangle truss , Square truss, Circular truss, Rectangle truss |
| Package | Carton, Trolley; Flight Case; Pallet |
| Application | Concert, Wedding, Ninja Warrior, Exhibition, Events for outdoor and indoor |
The Stage Roof Truss Structure is composed of multipurpose Box Truss 290*290mm as beams and pillars with right load-bearing capacity. It is modular and versatile, quick and easy to assemble and saving building time and labour cost. Besides, you can also extend it to be Pyramid roof, Arc Roof, ect.
Read More
Outdoor Event Lighting Truss available for rental and It is composed of multipurpose Box Truss as beams and pillars with right load-bearing capacity. Aluminum truss is widely used in all kinds of event and stage, it provides structure to hold lightings and other stage equipments. it is also the outdoor stage system main frame.
Read More
Outdoor Stage Sound Truss System 8m long, 5m deep and 5m high with 2 speaker wings tower 2m wide. Sound Truss System provides a substantial and adaptable platform for any large-scale event. Its impressive dimensions allow for expansive stage design and a wide array of lighting and sound equipment placement.
Read More
The Outdoor custom Screw Truss sizes 6m wide, 6m deep and 6m high bolt truss system offering a robust and adaptable solution for both temporary and semi-permanent lighting and staging needs.
Read More
4 Pillars Triangle Stage Roof system is mid sizes truss system, it's use for most of outdoor and indoor performance. Flexible structure depend your requirement. Fast install and reasonable design. Jiayi Lighting truss can make any size and special design Truss Structuref system for you.
Read More
This Stage Truss Roof System with 6 Ground Support Towers for outdoor events with 2 soundwings which can hang on Line array speakes or LED screen wall.
Read More
The stage truss curved roof structure is a fixed tower-based structure with 400*400mm Square Truss Segments. Different demensions are customed by simply changing the arches. PVC Cover on the top and sizes are optional.
Read More
The Black Color 14m*8m*7m Aluminum Curved Roof Stage Truss System with stage platform. The Curved Roof Stage Truss system consists of several components, including straight trusses, curved trusses, connectors, pins, and base plates. The straight trusses are used to form the main support structure, while the curved trusses create the desired curved shape.
Read More
