Stage Roof System

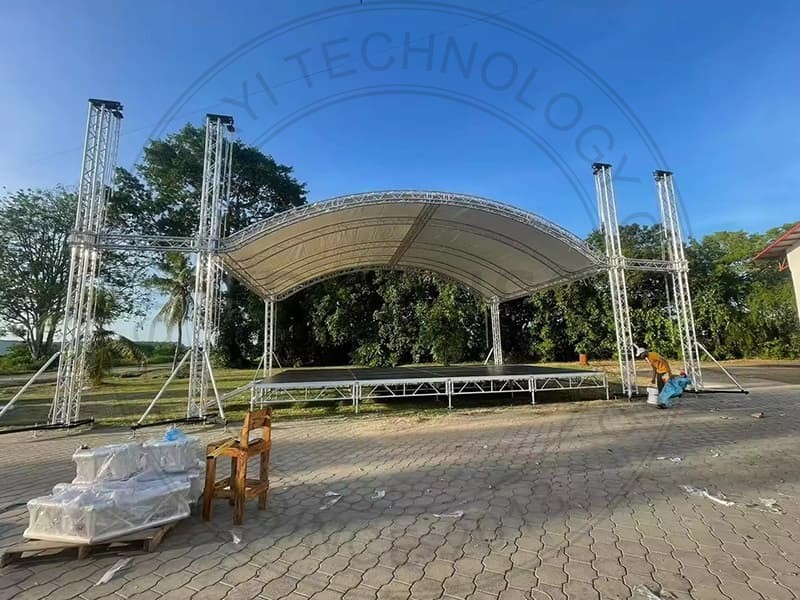

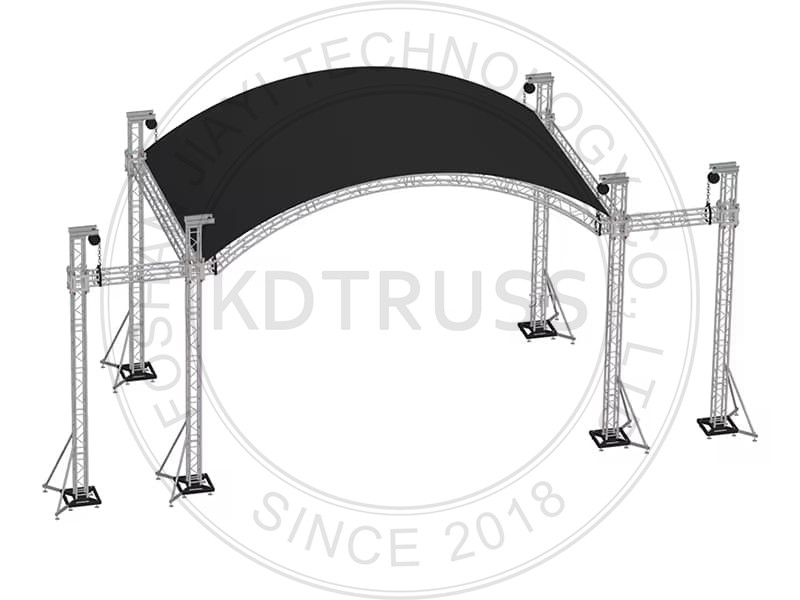

This complete modular Curved Roof Stage Truss System includes a curved PVC canopy, Square truss 400*400mm main beams, Box Truss 290*290mm pillars, and two dedicated 2m-wide speaker wings. It solves the challenge of combining stunning visual design with powerful audio support while maintaining quick assembly and exceptional load-bearing performance for lighting, LED screens, and line arrays Speakers.
Item No :
JY-TRUSS20Order(MOQ) :
1piecePayment :
30% deposit, 70% balance before delivery goods.( standard goods)Product Origin :
ChinaColor :
Sliver / BlackShipping Port :
Gunagzhou/Foshan/ShenzhenLead Time :
3-15 working daysThis professional-grade Curved Roof Stage Truss System is engineered for large-scale productions, music festivals, and corporate events. can offer different size according to your events' requirements.
Key Features:
Robust Construction: Constructed from high-grade, lightweight aluminum alloy, ensuring durability and resistance to corrosion for long-term outdoor use.
Optimal Dimensions: The substantial structure can reach Max. 15m in length by 15m in depth, with a towering 9m height, providing ample space and clear sightlines for any event.

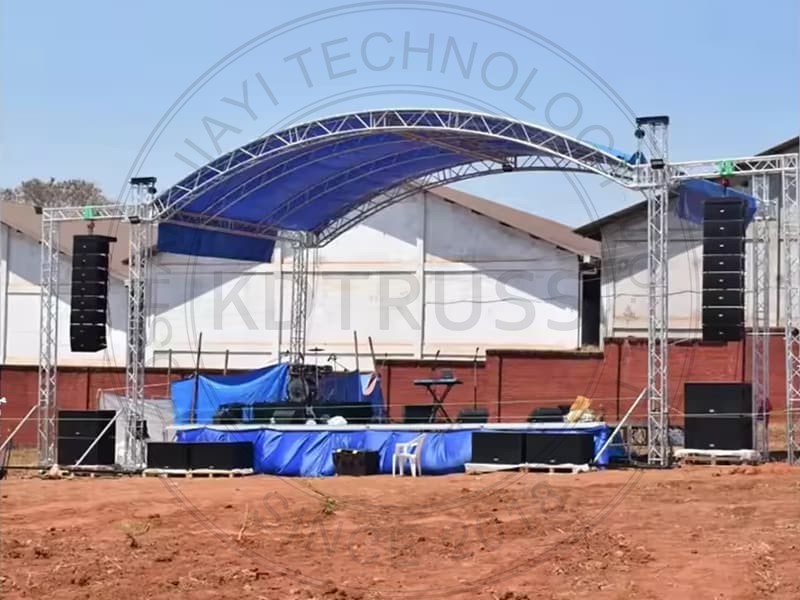

Integrated Speaker Wings: Includes two dedicated 2m-wide speaker wings designed for mounting line array sound systems, ensuring optimal audio distribution and a professional aesthetic.
Versatile Application: This modular system supports significant loads of lighting fixtures, LED screens, and audio equipment without compromising safety, perfect for any major event.
Easy Assembly: Designed for efficient setup and breakdown, with a quick and simple connection system for smoother logistical operations.
We can offer different shape, size truss for your different event needs.
| Product Name | Spigot Truss, Bolt Truss, Global Truss, Thomas Truss, Roof Truss , Pre-Rigging truss, Stage Truss; Box truss; light truss stand; Layer truss; Aluminum truss; Lifting System |
| Truss Type |
Spigot Truss: 100x100mm, 220x220mm, 290x290mm, 400x400mm,520x520mm, 760*520mm,1010*610mm Etc Bolt Truss: 12''x12'' screw truss; Thomas Truss; Tomcat Truss; 400x400mm, 520*520mm Etc |
| Length | 0.5m/1.0m/1.5m/2.0m/2.5m/3.0m/3.5M; 1FT/2FT/3FT/4FT/5FT/6FT/8FT/10FT/12FT |
| Raw Material | Aluminum Pipe: EN AW 6082-T6/ 6061-T6 ; Welding rod: AlcoTec 5356/4043 |
| Truss Surface | Original Silver; Or Customized Color By Powder Coating & Anodizing; |
| Certificate | ISO 9001, ISO 3834; TUV Certificate, EN1090-1; EN1090-3; SGS certified |
| Section Shape | Ladder truss, Triangle truss , Square truss, Circular truss, Rectangle truss |
| Package | Carton, Trolley; Flight Case; Pallet |
| Application | Concert, Wedding, Ninja Warrior, Exhibition, Events for outdoor and indoor |
Q1: What are the dimensions and speaker wing size can work?

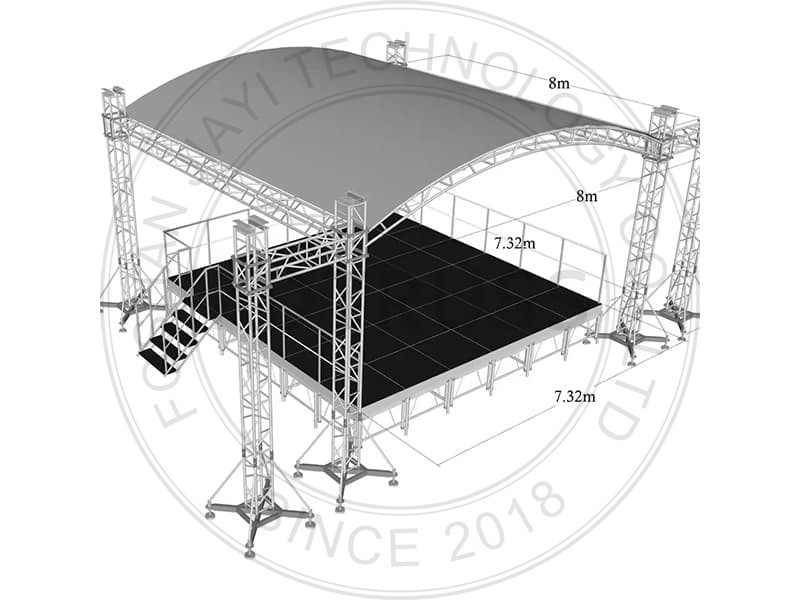

A: The Truss Design can make 10*8*7m/ 12*10*7m/ 12*8*7m and Max. 16*16*7m two integrated 2m-wide speaker wings specially designed for line array speakers.
Q2: Is this system suitable for outdoor use and what certifications does it have?
A: Yes, it is built for outdoor events with corrosion-resistant aluminum and includes a full PVC roof canopy. The system is TUV-certified for safety and structural integrity.
Q3: How long does it take to assemble and what is included?
A: The modular design allows fast setup using the included towers, manual hoists, fibre slings, and all necessary connectors. Usually need 2 hours with 4 workers can be finished.

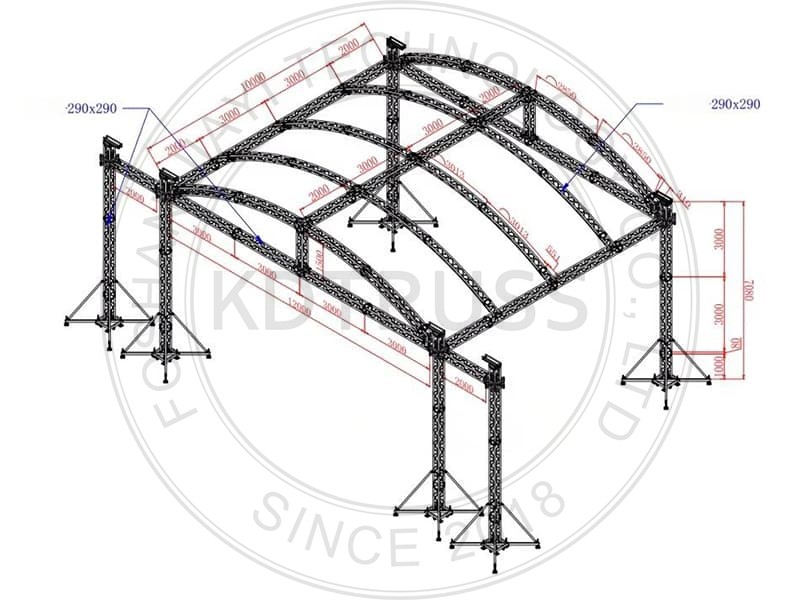

The Stage Roof Truss Structure is composed of multipurpose Box Truss 290*290mm as beams and pillars with right load-bearing capacity. It is modular and versatile, quick and easy to assemble and saving building time and labour cost. Besides, you can also extend it to be Pyramid roof, Arc Roof, ect.
