Help Erector System for Truss Tower

The Truss Tower Erector System is a tool used to simplify the assembly of truss towers, particularly those used for lighting, rigging, or stage structures. These systems typically involve a lifting mechanism, often a motor hoist or chain hoist, that lifts the tower segments while they are connected to the erector. The erector is then used to attach the tower segments to a base or grid, ensuring stability and ease of assembly.

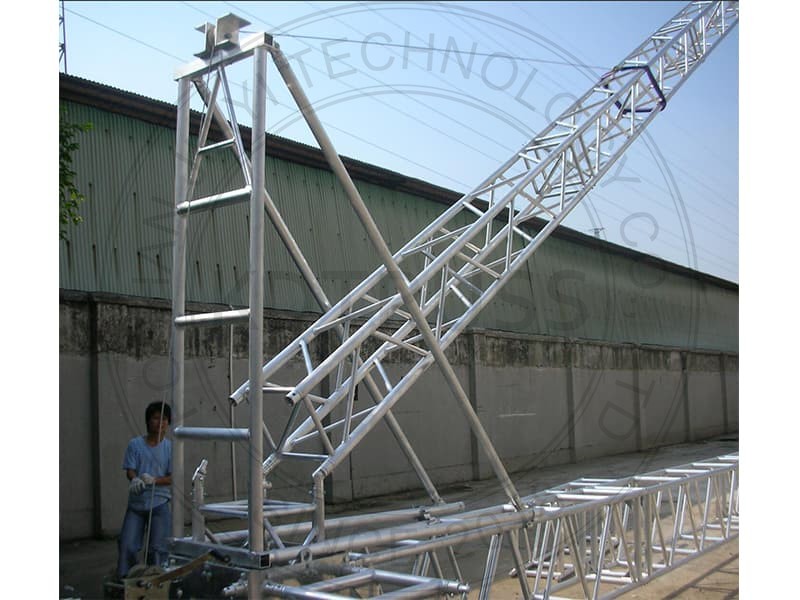

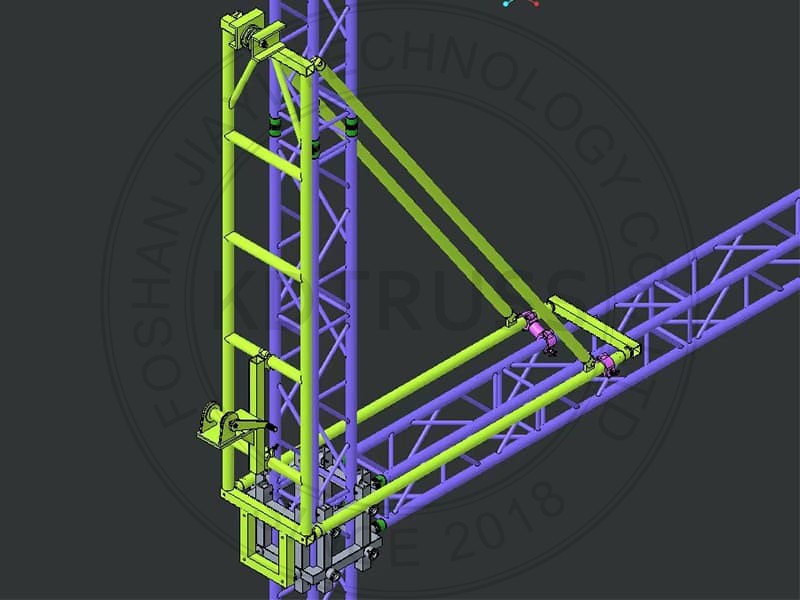

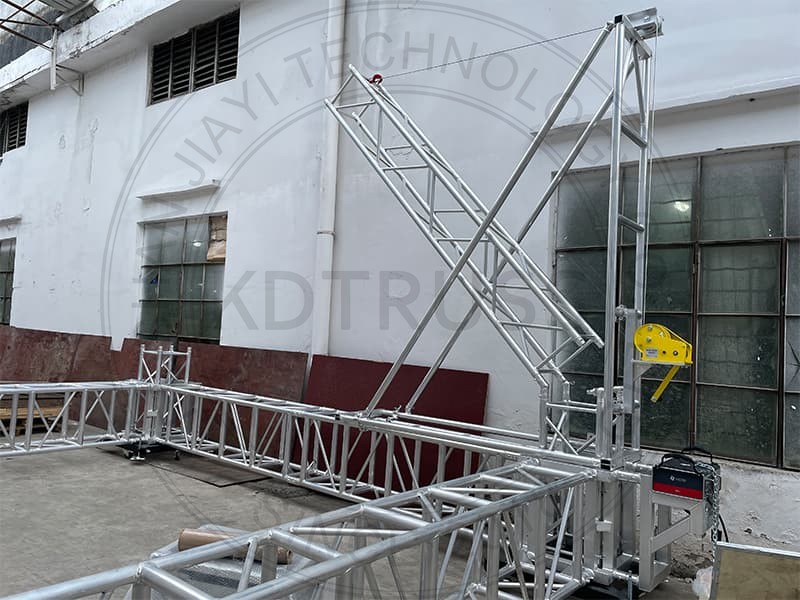

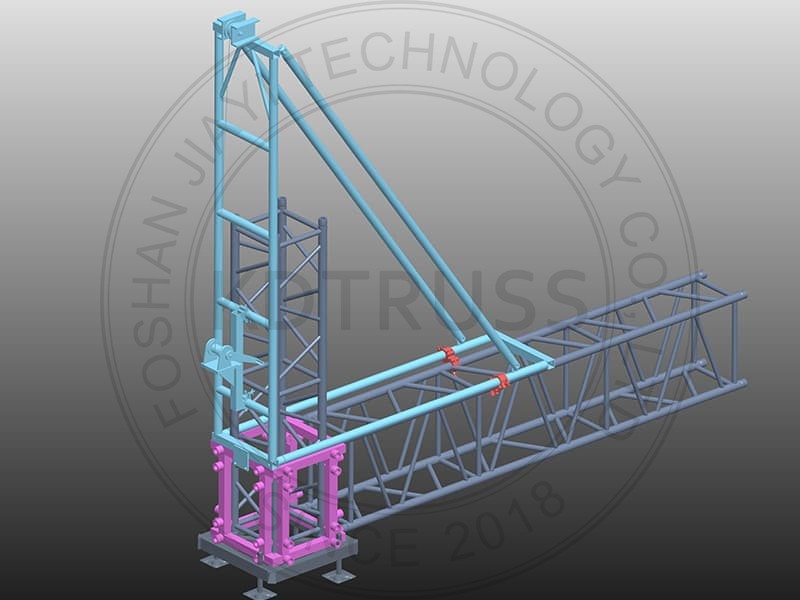

When the Truss Pillar height more than 6 meters, you can choose to use the "Help Erector System". The Help Erector System can lift the Truss Pillar by using a hoist. Each set of Truss Structure only requires one set of "Help Erector System". When the pillar truss height exceeds 6 meters, usually it is difficult to erect the pillar truss by manpower. The higher the truss or the larger the specification of the truss, the more manpower is needed. Although the truss pillar is designed with a base frame or a movable adapter, it is still a very hard job, especially when the column is placed after the project is completed. At the same time, all the participants need to cooperate very well to avoid safety problems. When you choose to use the "Truss Tower Erector", these problems will no longer exist. As shown in the figure, you only need to connect the hoist to the "column erection frame" and lift the column up through the hoist. It is safe and reliable. The whole process can be completed by only two people. Please provide the text you want to be translated.

After the Truss Pillar are erected, the "Truss Tower Erector" can be removed. Only one set of column-lifting frame is needed for a project.

Components of a Truss Tower Erector System:

Truss segments: The main structural components of the tower, typically made of aluminum alloy.

Erector frame: A structure that provides a stable platform for lifting and attaching the truss segments.

Lifting mechanism: A motor hoist or chain hoist that lifts the tower segments.

Base plate or attachment points: Where the tower is anchored to the ground or a grid.

Clamps or quick-release pins: Used to connect the tower segments together and to the erector frame.

Benefits of using a truss tower erector system:

Simplified assembly: Makes it easier and faster to assemble truss towers.

Reduced labor: Reduces the number of people required for assembly.

Improved safety: Provides a more controlled and safer way to lift and assemble truss towers.

Versatility: Can be used with various types of truss structures and lifting mechanisms.

Features:

Provides supporting in lifting the FG34 truss tower

Quick and easy installation.

The chain hoist can be placed through the top of the tower ift to supporting he lift.
